AOJ-35D · Wrist Blood Pressure Monitors

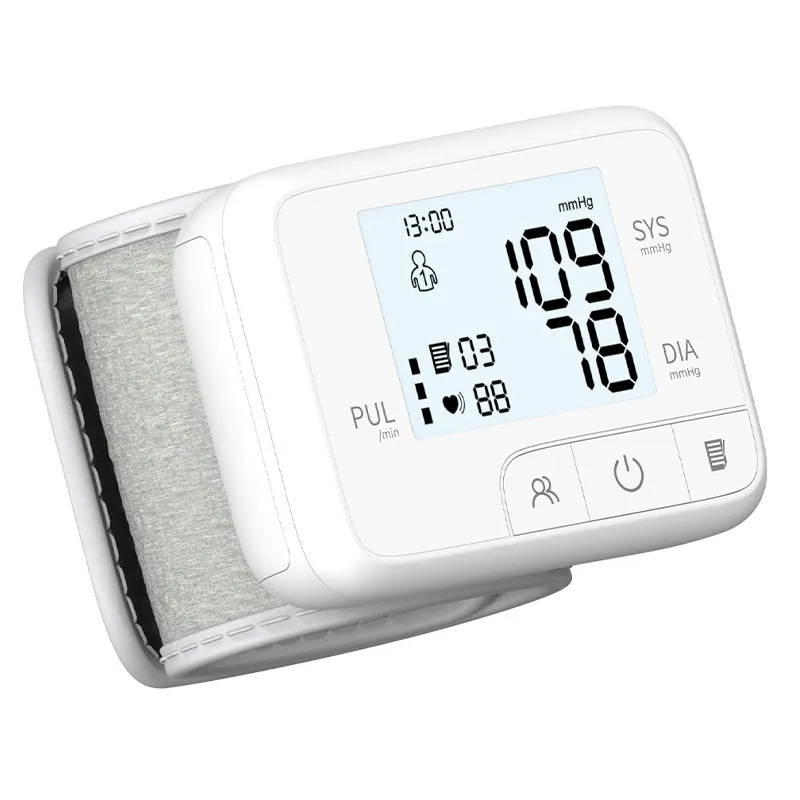

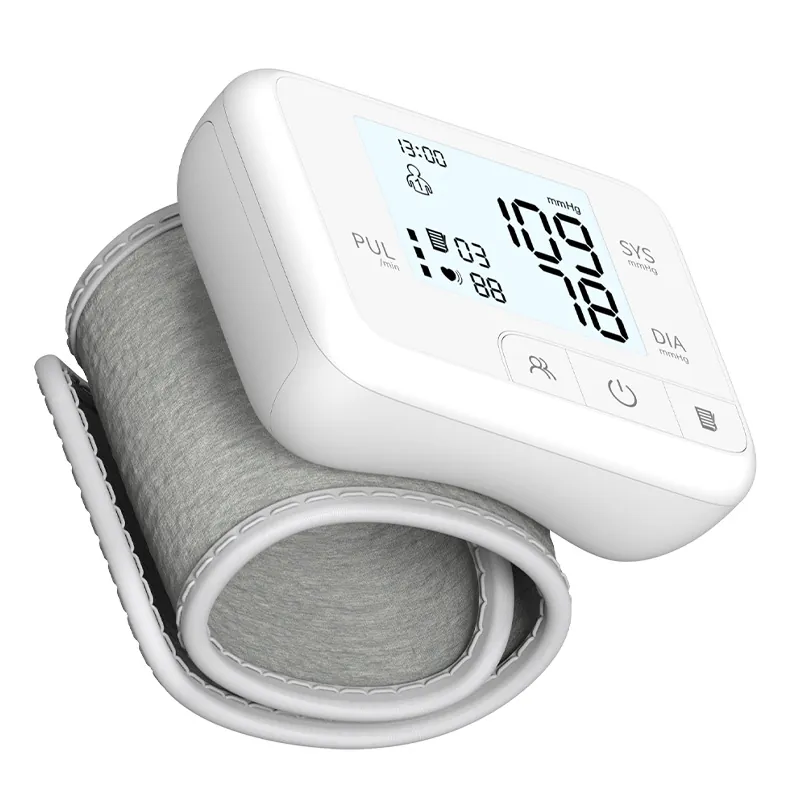

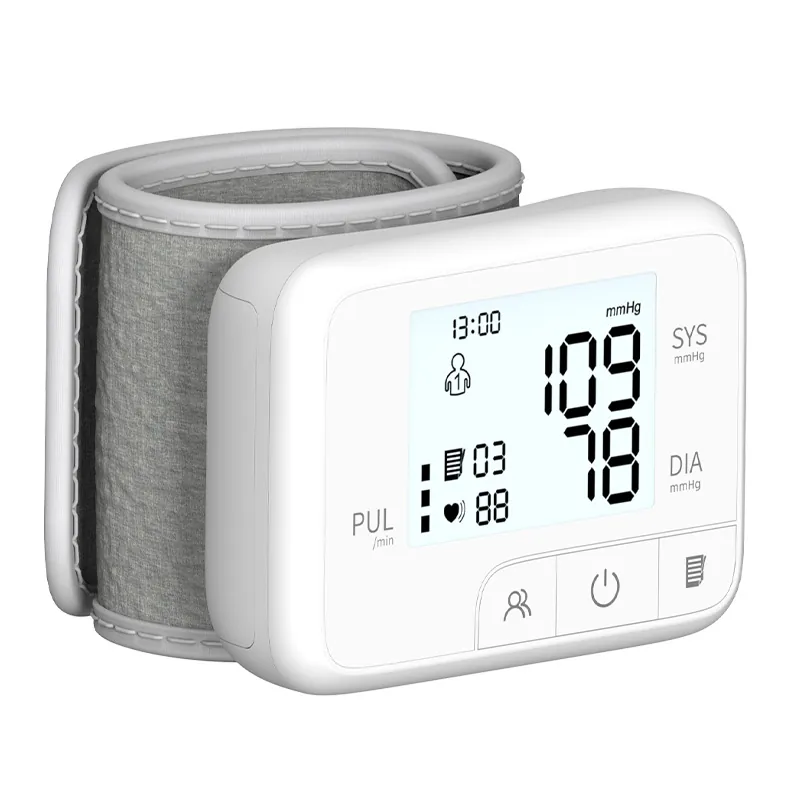

AOJ-35D Home High Precision Small Wrist Blood Pressure Monitor Intelligent Voice Blood Pressure Machine (White)

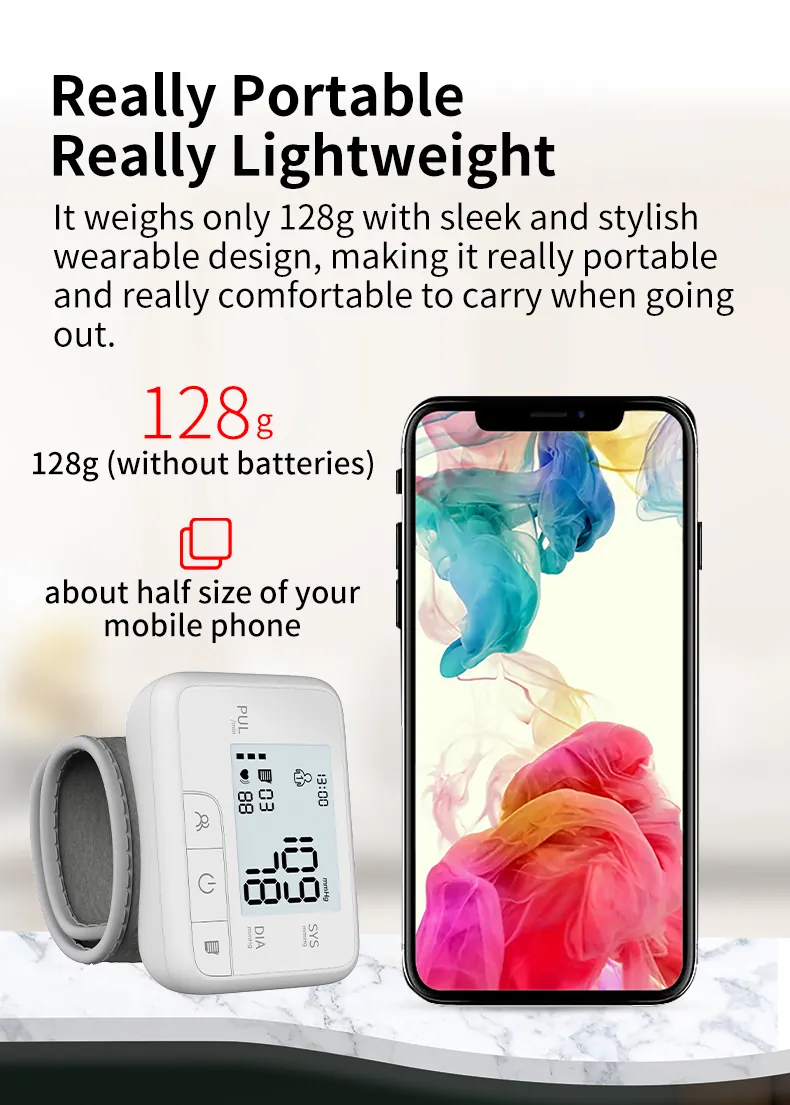

1. Portable: All in one design, only weighs 128g without betteries, smaller than half a mobile phone
2. One Button Operation: no need to take off clothes

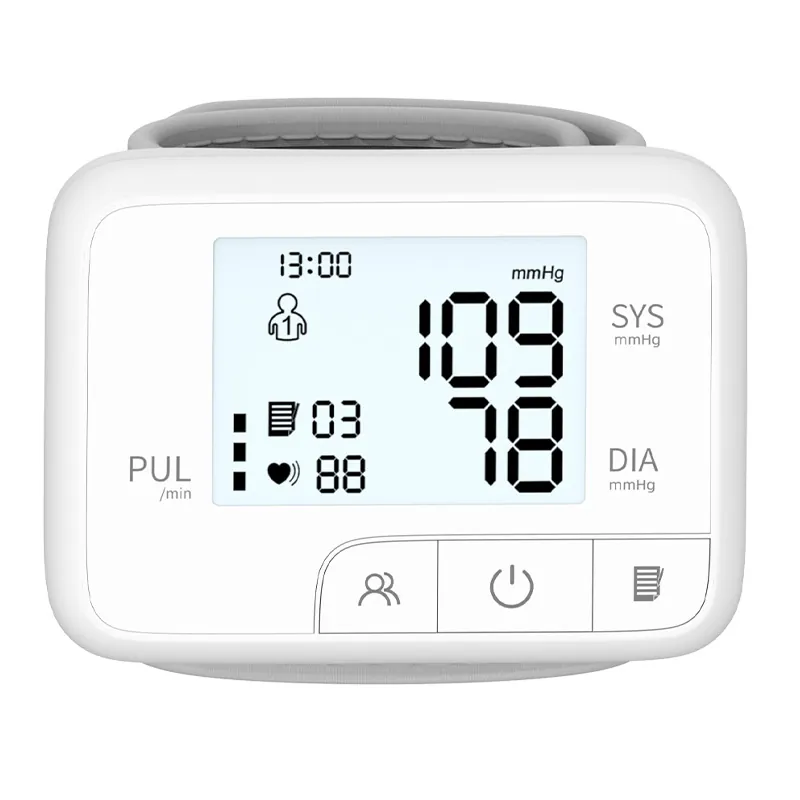

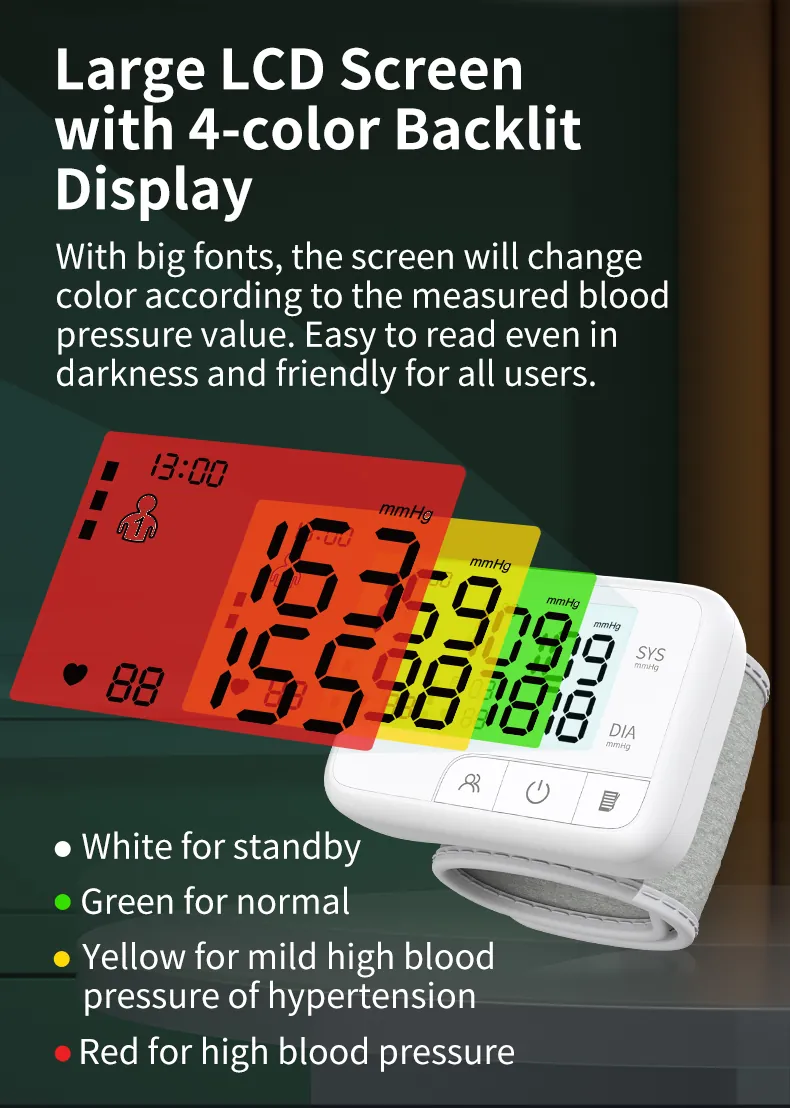

3. Large Screen: High-definition, full viewing angle coverage, four-color backlight display

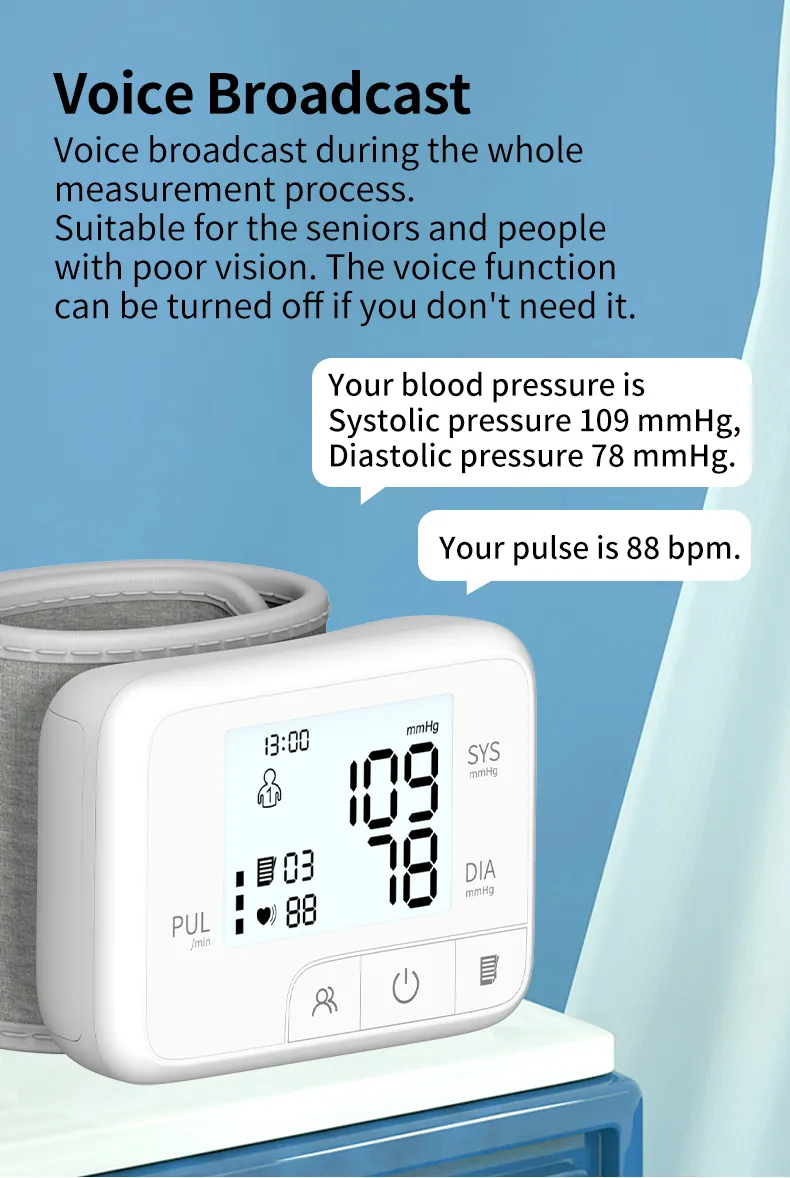

4.Intelligent Broadcast: the whole process of voice guidance measurement

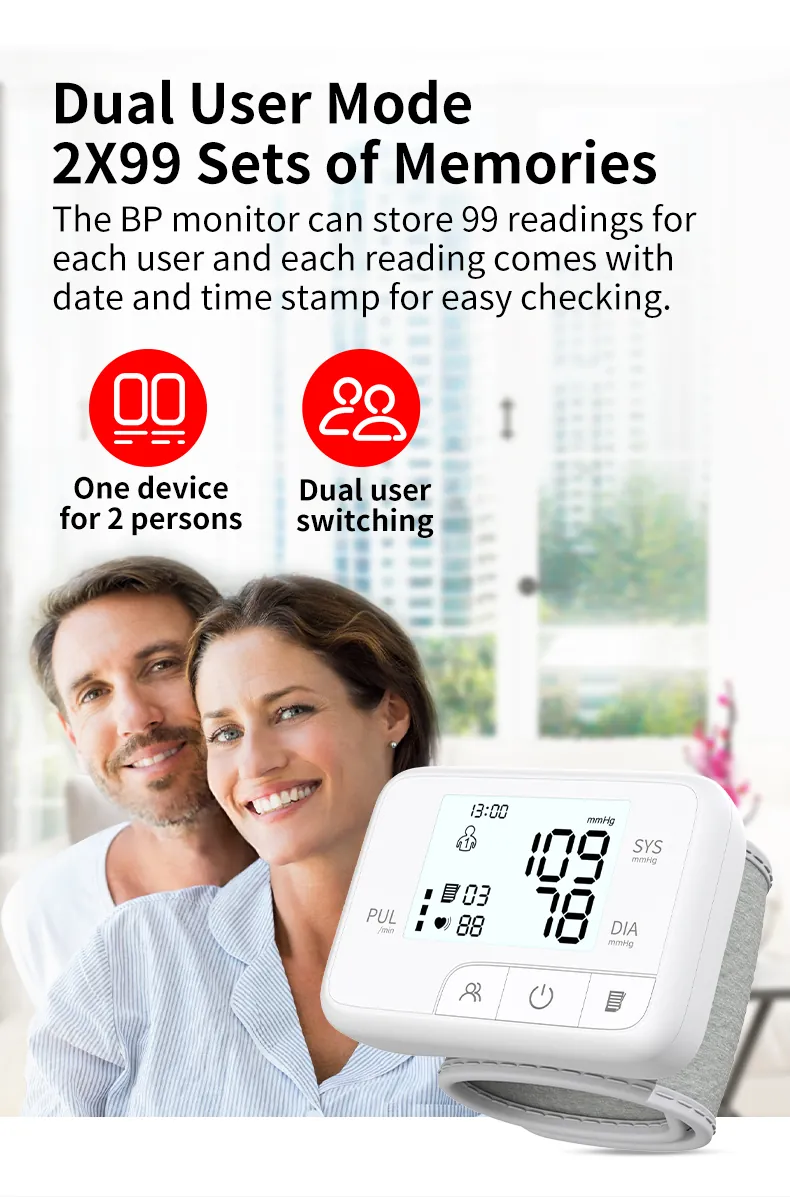

5. Dule Users Mode: 2 users*99 memories

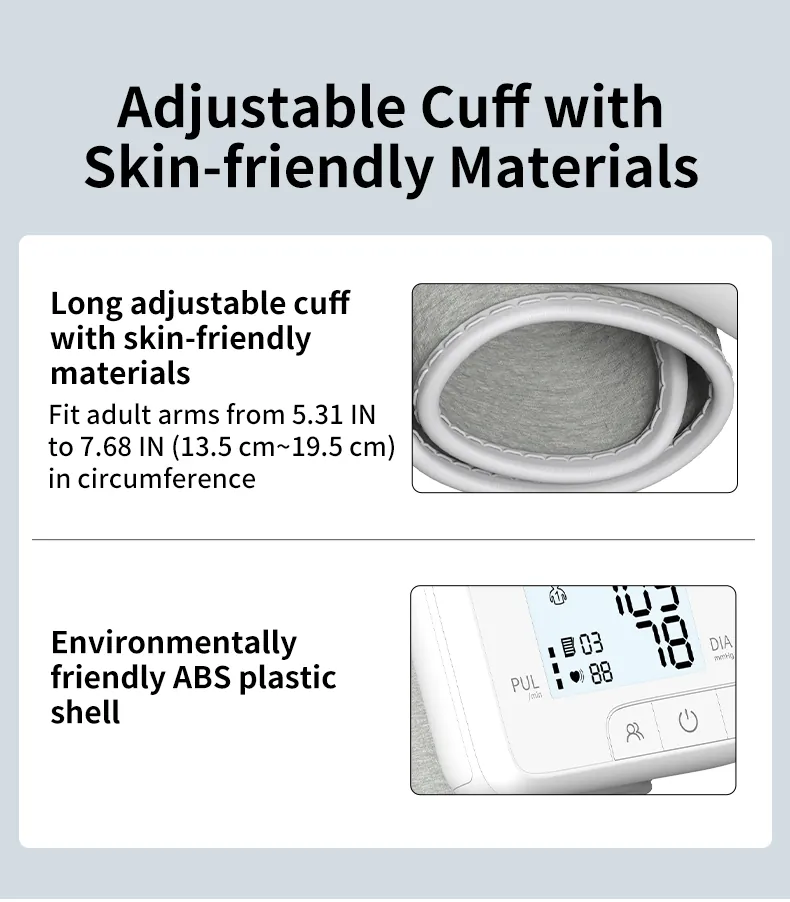

6. Intelligent Compression: Adjustable cuff (8.66-16.53 inches) and intelligent inflation

OEM / ODM FDACE / EU MDRNMPAISO 13485ISO 14001

Request a quote Request controlled spec sheet

Product details

Content published for this model. Model designations and specification values are kept verbatim in every language.

AOJ-35D Home High Precision Small Wrist Blood Pressure Monitor Intelligent Voice Blood Pressure Machine

Video:

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 1

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 2

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 3

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 4

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 5

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 6

Show 10 more images

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 7

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 8

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 9

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 10

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 11

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 12

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 13

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 14

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 15

AOJ-35D Wrist Blood Pressure Monitors — Product graphics 16

All 16 product graphics published for this model are included here; model designations and specification values are kept verbatim.

Specifications

Measuring Method	Oscillometric
Display	Large LCD Screen
Pneumatic Pressure Measuring Range	0~295 mmHg (0~39.3 Kpa)
Overpressure Protection Limit	300 mmHg
Measurement Range	SYS:45-230 mmHg; DIA: 25-160 mmHg; Pulse rate:40-199 bpm
Accuracy	Blood Pressure:±3 mmHg(±0.4 Kpa); Pulse Rate: ± 5 bpm
Memory	2*99 Memories
Power Source	2*AAA batteries
Dimensions	Approximately 3.54 inches (w) x 1.12 inches (h)x 2.6 inches (d) (90 mm x24.5 mm x66 mm)
Screen Size	49x36 mm (2.4 inches)
Weight	Approximately 4.5 0Z. (128 g) without batteries
Wist Circumference Range	Approximately 5.31 inches~7.68 inches (135 mm195 mm)
Operation Mode	Continuous operation
Service life	5 years
Operating environment	Temperature Condition:5 C-40 C Humidity Condition：15%-90%RH Atmospheric Condition: 70 kPa-106 kPa

The table lists the specifications published for this model. The full controlled sheet — accuracy report, electrical ratings and packaging data — comes with your enquiry.

OEM / ODM

This model can be customised as a whole product: housing finish and silkscreen, display and language pack, cuff specification, app branding, retail packaging and manual. New variants can also be derived from the same platform.

Documentation and samples

The files a buyer normally needs before a program is signed off. Everything is issued against an enquiry and matched to the exact model.

Regulatory	Certificate copies and scope statements Test reports from accredited laboratories Declarations of conformity, and FDA clearance numbers where applicable Technical file extracts for your own regulatory submission
Technical	Controlled specification sheet: measurement method, accuracy, electrical ratings, cuff range Packaging, carton and master-carton data Protocol and SDK documentation for connected models
Commercial	Quotation with volume tiers MOQ and lead time for the model you select Sample arrangement before tooling
