AOJ-20A · Infrared Thermometers

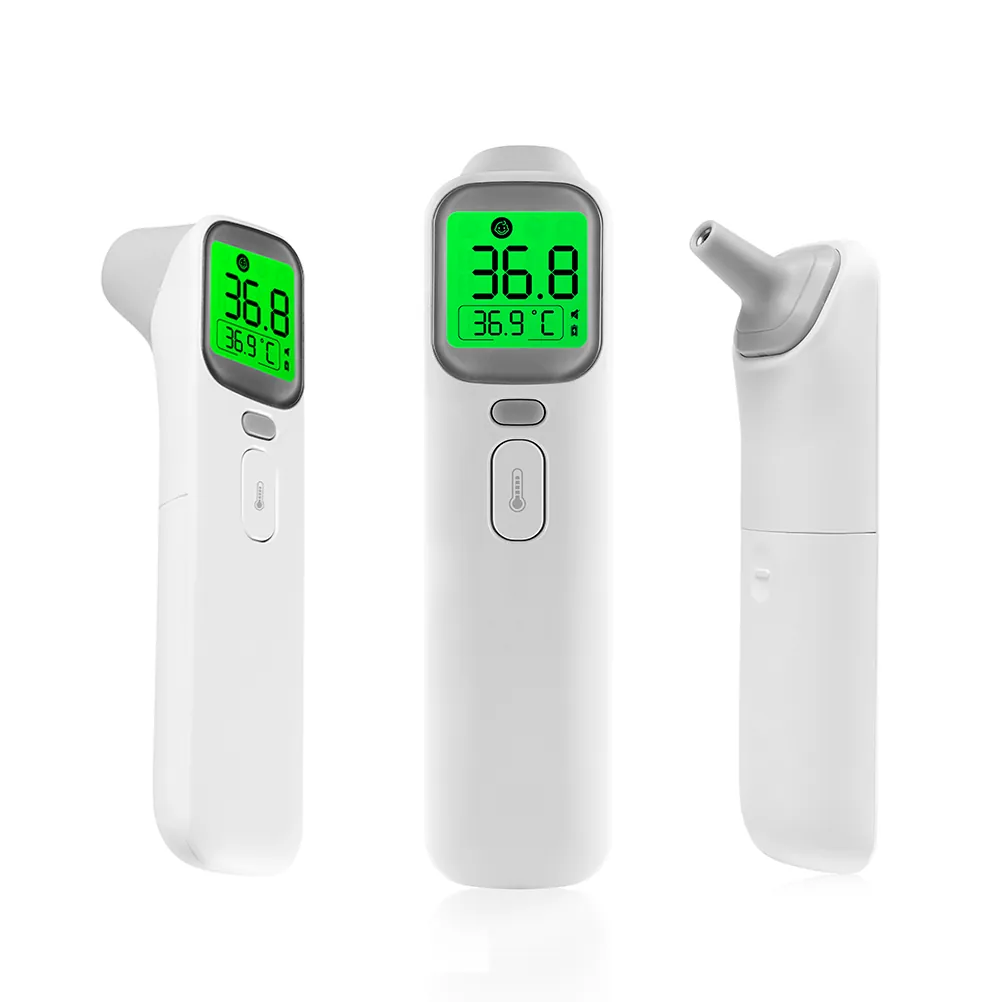

AOJ-20A Infrared Forehead Thermometer

  • 1. Advanced Technology for Excellent Performance

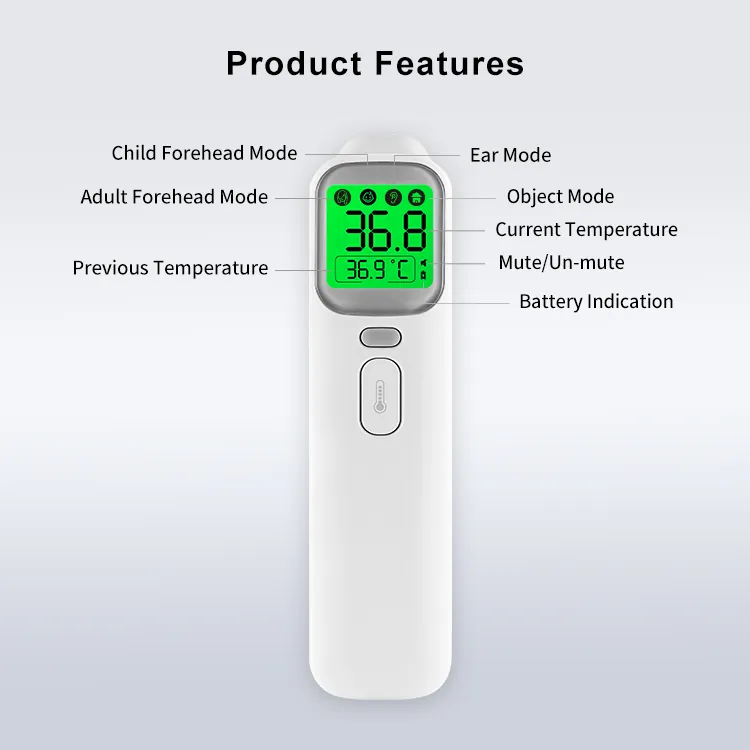

  • 2. 3 measurement modes: forehead mode, ear mode, object mode

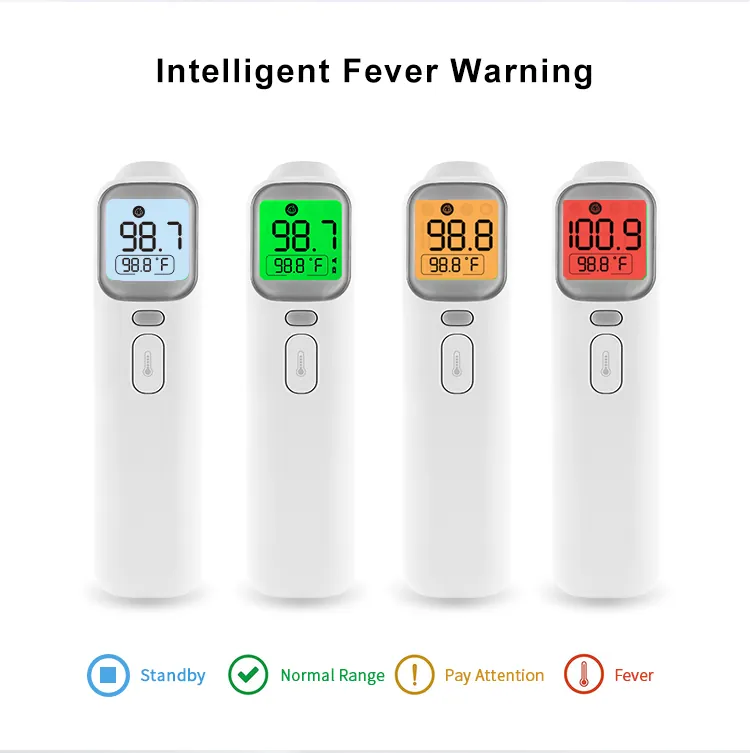

  • 3. 3-color backlit with visual fever warning

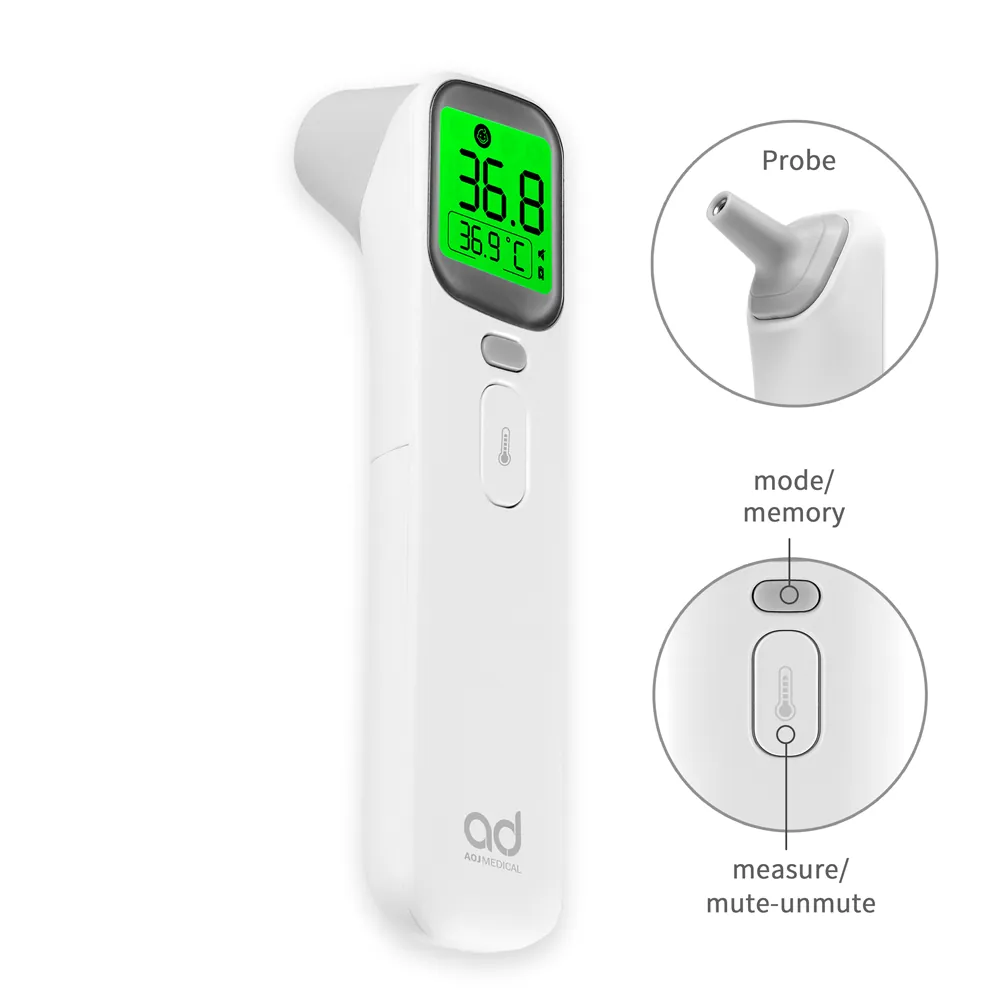

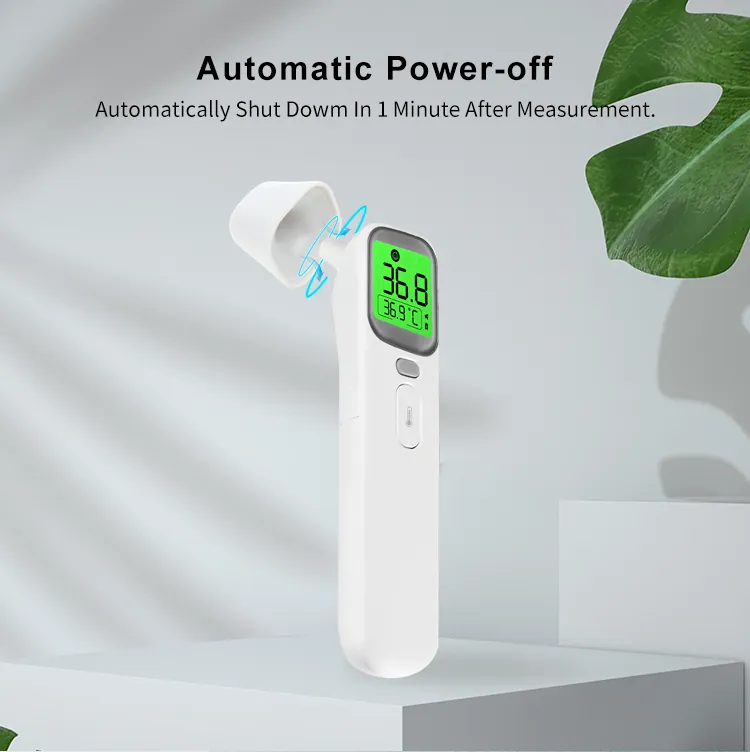

  • 4. Auto switching mode by open/close the magnetic probe cover
  • 5. Auto power off without any operation within 10 Seconds
  • 6. Clinical tests passed and relevant certification approved
OEM / ODM FDACE / EU MDRNMPAISO 13485ISO 14001

Product details

Content published for this model. Model designations and specification values are kept verbatim in every language.

Why Choose AOJ-20A Infrared Thermometer?

1. Multi Function : It has forehead mode , ear mode, object mode, 3 modes make the temperature measurement more accurate.

2 . Easy to use ,the machine design intention is for Simple and accurate.

3. Read the temperature in 1 second , so the parents no longer worry about the difficulty of temperature measurement, and sick children can sleep soundly without being disturbed by temperature measurement.

4.It can help you remember 40 sets of temperature data . You have no need to record it any more.

5. With Mute Mode;

6. Fever warning function;

7. Conversion of Celsius/Fahrenheit Units;

8. Automatic shutdown function, low power consumption.

9.Slim Cut, Small body with large screen , show current and previous readings .

10 . Multi-function : Strict inspection standard, control the accuracy within ±0.15℃in blackbody mode, with thousands of clinical trials.

11. Product Quality Reliable: 100% Product Testing . Every unit will run environmental test between 15℃ to 35℃.

12. Product Design:

Uninque Shape Patent Design Protection Product . it has Obrious Advantage to open the market than public model.

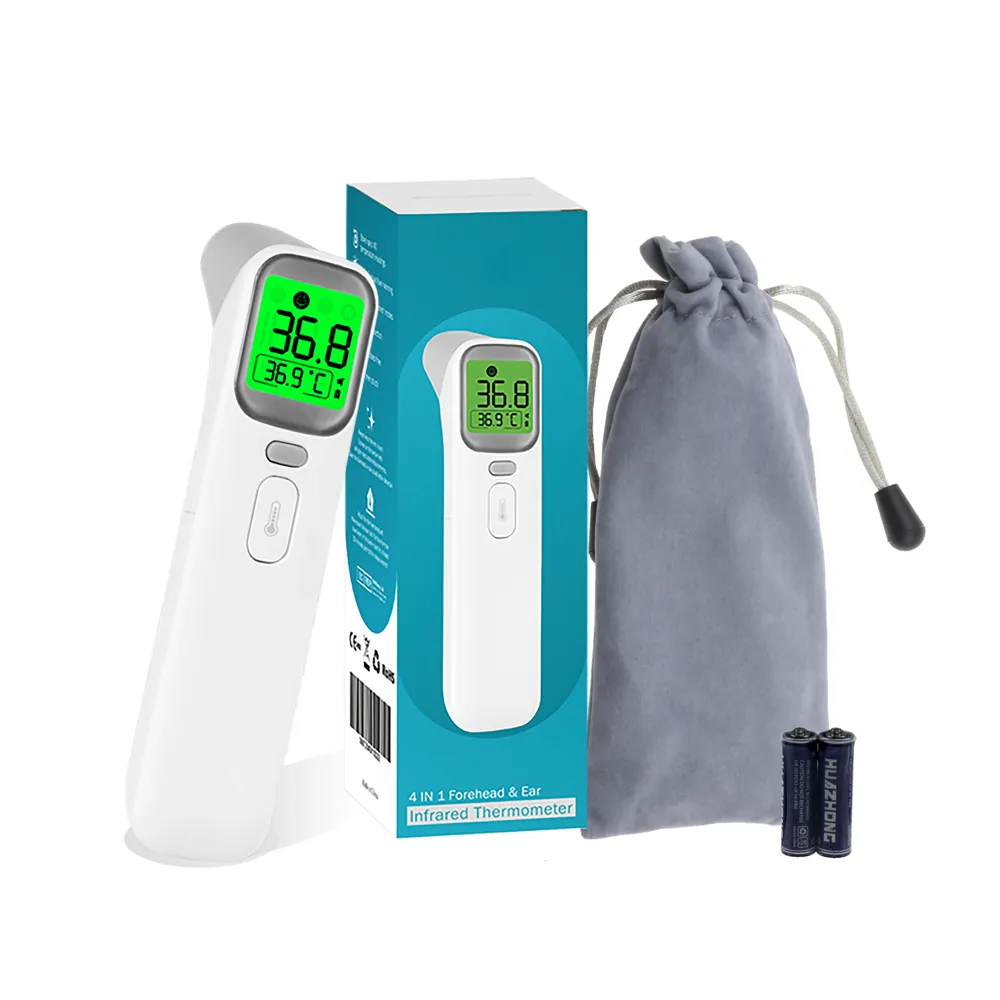

13. With stylish protective pouch with every purchase

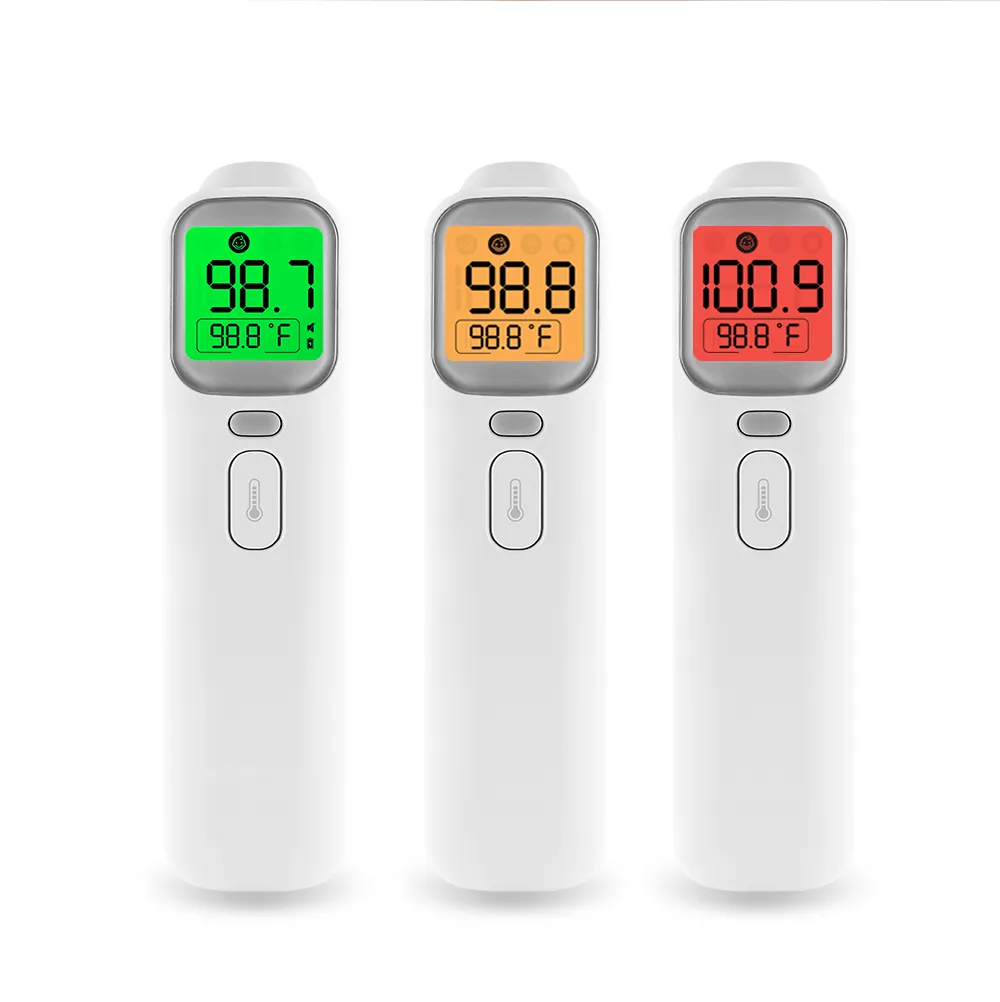

14. 3 Colors Backlight ,color temperature indication

15. The AOJ Infrared Thermometer shuts off automatically after 10 Seconds to preserve life of battery.

16. Low battery indicator, warns user to replace battery.

17. Factory Price. The price is very competitive.

18. Useage: The product is not only Perfect for use with newborns, infants, children or adults, but also perfect to test room temperature, milk, water, bath water.

Specifications

Product Name 4 in one forehead & ear infrared thermometer AOJ-20A
Applicable Regulations and laws ASTM E-1965-98(Reapproved 2009) standard specification for Infrared thermometers for intermittent determination of patient temperature
ISO80601-2-56 first edition 2009-10-01 medical electrical equipment -part 2-56: particular require-ments for basic safety and and essential performance of clinical thermometers for body temperature measurement.(general plastic surgery/general hospital) —
Display Segment LCD, green and red LCD backligh
Temperature Units °C/°F ,Switchable
Power Supply DC 3V,2
Measurement Range Forehead: 35°C-42°C(95°F-108°F)
Ear: 35°C-42°C(95°F-107.6°F) —
Object: 0°C-100°C(32°F-199°F) —
Accuracy(Laboratory) Object mode +-1°C/+-2°F
Display Resolution 0.1°C/°F
Automatic Shut Down 10s+_1s
Memory 40 Groups of measured temperature
Operational Conditions Temperature:10°C-40°C (50°F-104°F)/Humidity:15%-95%RH,non-condensing atmospheric pressure:70-106kPa
Storage Condition Ambient temperature:20°C-55°C(-4°F-131°F)relative humidity: 0-95% RH,non-condensing atmospheric pressure :50Kpa to 106Kpa
Battery 2,can be used for more than 3000 times

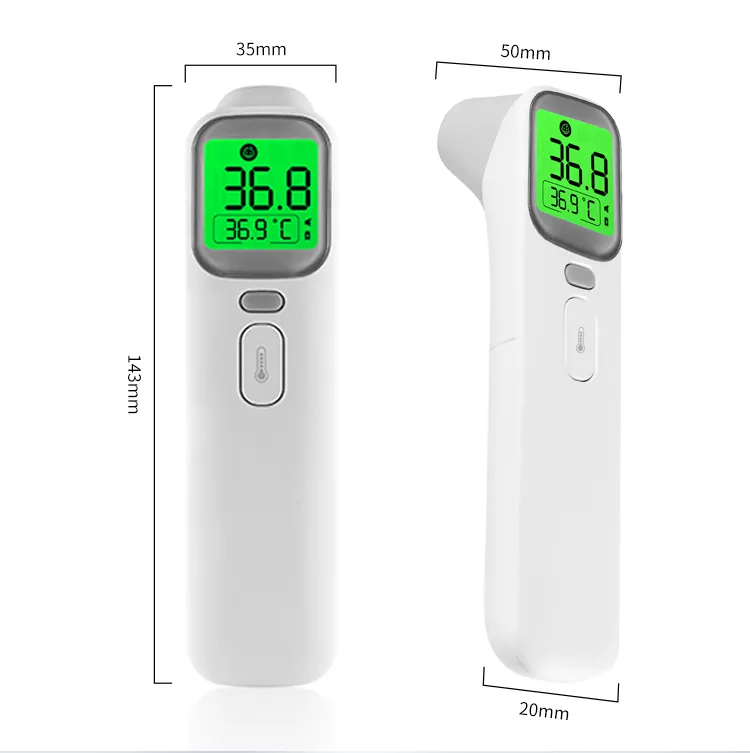

Gross Weight&Dimension 101g(with Battery)143*35*41mm
Show 6 more images

All 12 product graphics published for this model are included here; model designations and specification values are kept verbatim.

Specifications

Product Name 4 in one forehead & ear infrared thermometer AOJ-20A
Applicable Regulations and laws ASTM E-1965-98(Reapproved 2009) standard specification for Infrared thermometers for intermittent determination of patient temperature
Display Segment LCD, green and red LCD backligh
Temperature Units °C/°F ,Switchable
Power Supply DC 3V,2
Measurement Range Forehead: 35°C-42°C(95°F-108°F)
Accuracy(Laboratory) Object mode +-1°C/+-2°F
Display Resolution 0.1°C/°F
Automatic Shut Down 10s+_1s
Memory 40 Groups of measured temperature
Operational Conditions Temperature:10°C-40°C (50°F-104°F)/Humidity:15%-95%RH,non-condensing atmospheric pressure:70-106kPa
Storage Condition Ambient temperature:20°C-55°C(-4°F-131°F)relative humidity: 0-95% RH,non-condensing atmospheric pressure :50Kpa to 106Kpa
Battery 2,can be used for more than 3000 times
Gross Weight&Dimension 101g(with Battery)143*35*41mm

The table lists the specifications published for this model. The full controlled sheet — accuracy report, electrical ratings and packaging data — comes with your enquiry.

OEM / ODM

This model can be customised as a whole product: housing finish and silkscreen, display and language pack, cuff specification, app branding, retail packaging and manual. New variants can also be derived from the same platform.

Documentation and samples

The files a buyer normally needs before a program is signed off. Everything is issued against an enquiry and matched to the exact model.

Regulatory
  • Certificate copies and scope statements
  • Test reports from accredited laboratories
  • Declarations of conformity, and FDA clearance numbers where applicable
  • Technical file extracts for your own regulatory submission
Technical
  • Controlled specification sheet: measurement method, accuracy, electrical ratings, cuff range
  • Packaging, carton and master-carton data
  • Protocol and SDK documentation for connected models
Commercial
  • Quotation with volume tiers
  • MOQ and lead time for the model you select
  • Sample arrangement before tooling

Certificates and test reports are issued per model, not per company. Tell us the target market and we send the matching set.

Request a quote

Tell us your target market, expected volume and timeline. We reply within one business day.

We reply within one business day. Your details are never shared.

Work email: marketing@aojmedical.com · WhatsApp: +86 189 2643 1293 · Tel: +86-755-27786026
