AOJ-20H · Infrared Thermometers

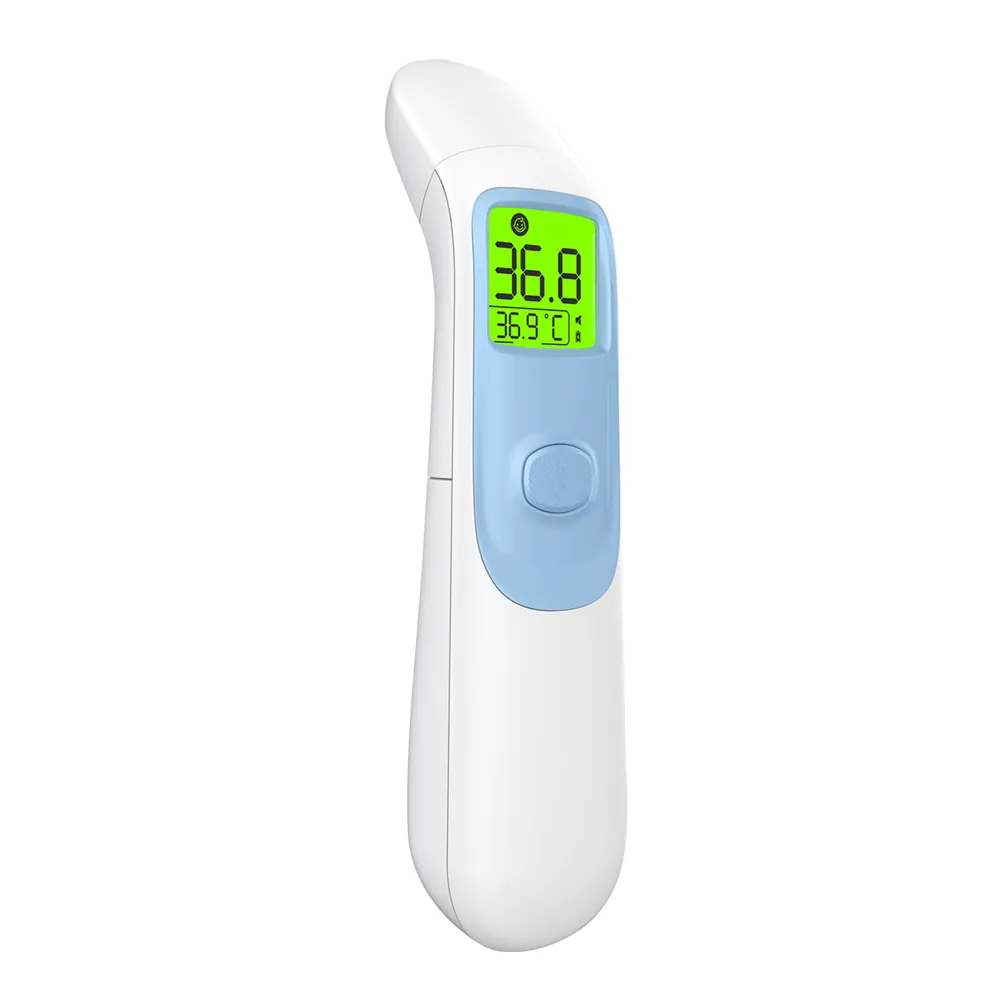

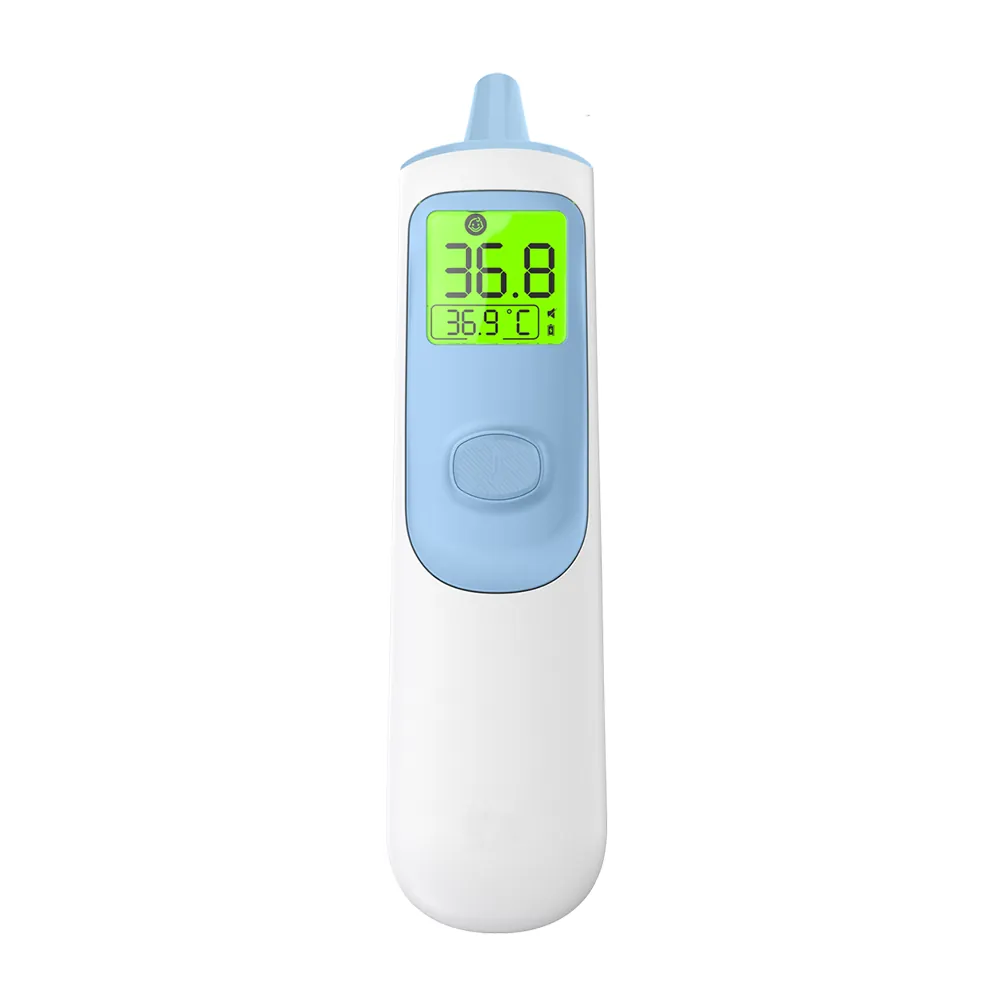

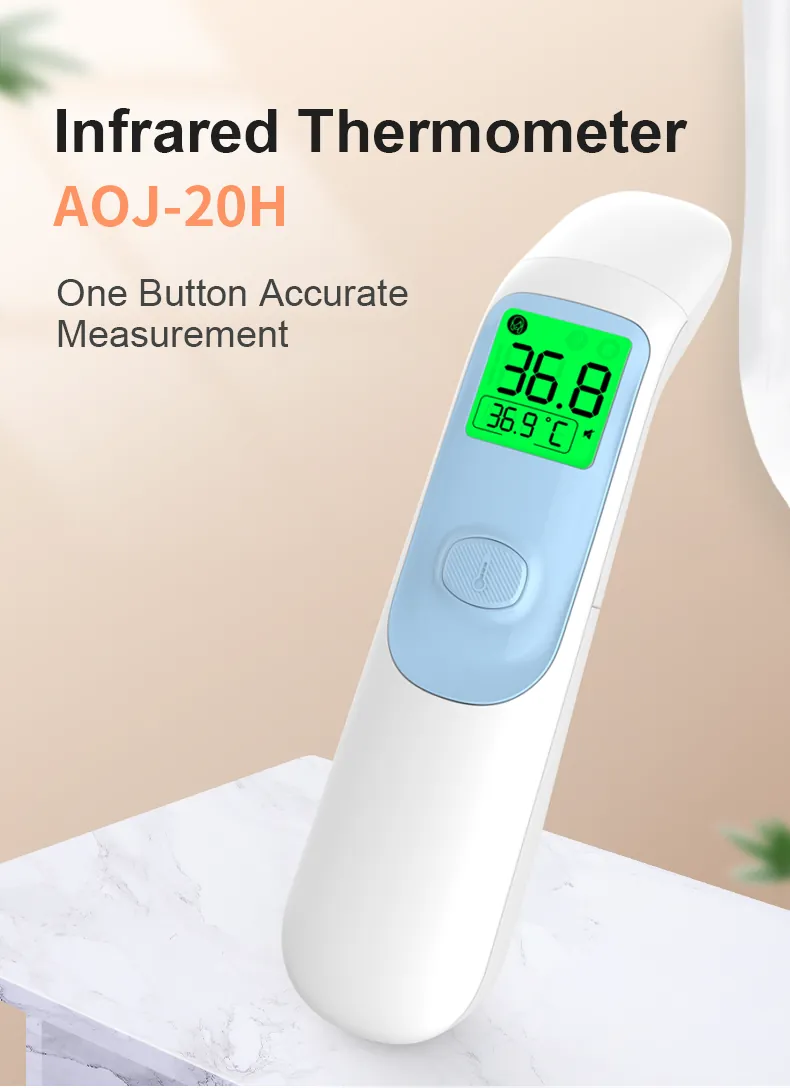

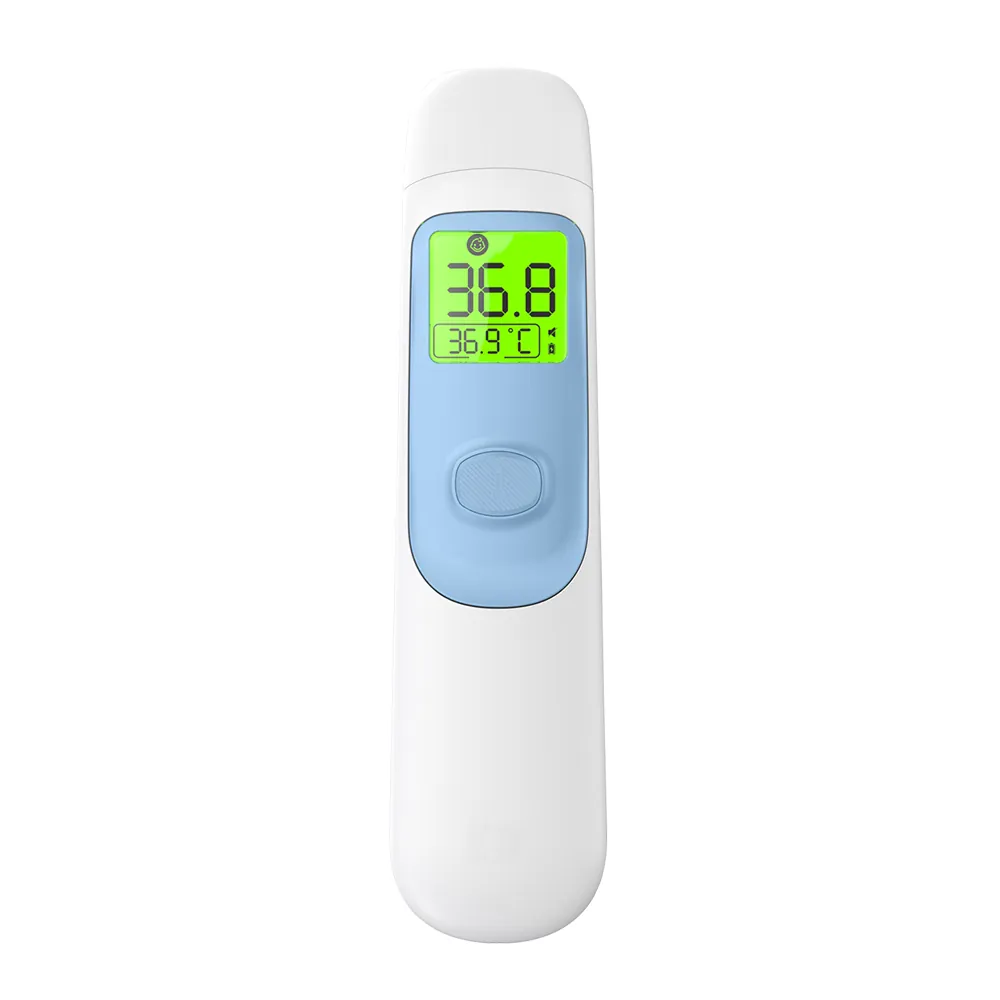

AOJ-20H Non-contact Infrared Forehead and Ear Thermometer

  • 1. One button operation, Instant reading in less than 1 second
  • 2. Audio and visual fever warning
  • 3. Store up to 40 temperature readings
  • 4. CE and FDA approved
OEM / ODM FDACE / EU MDRNMPAISO 13485ISO 14001

Product details

Content published for this model. Model designations and specification values are kept verbatim in every language.

Why Choose AOJ-20H Infrared Thermometer?

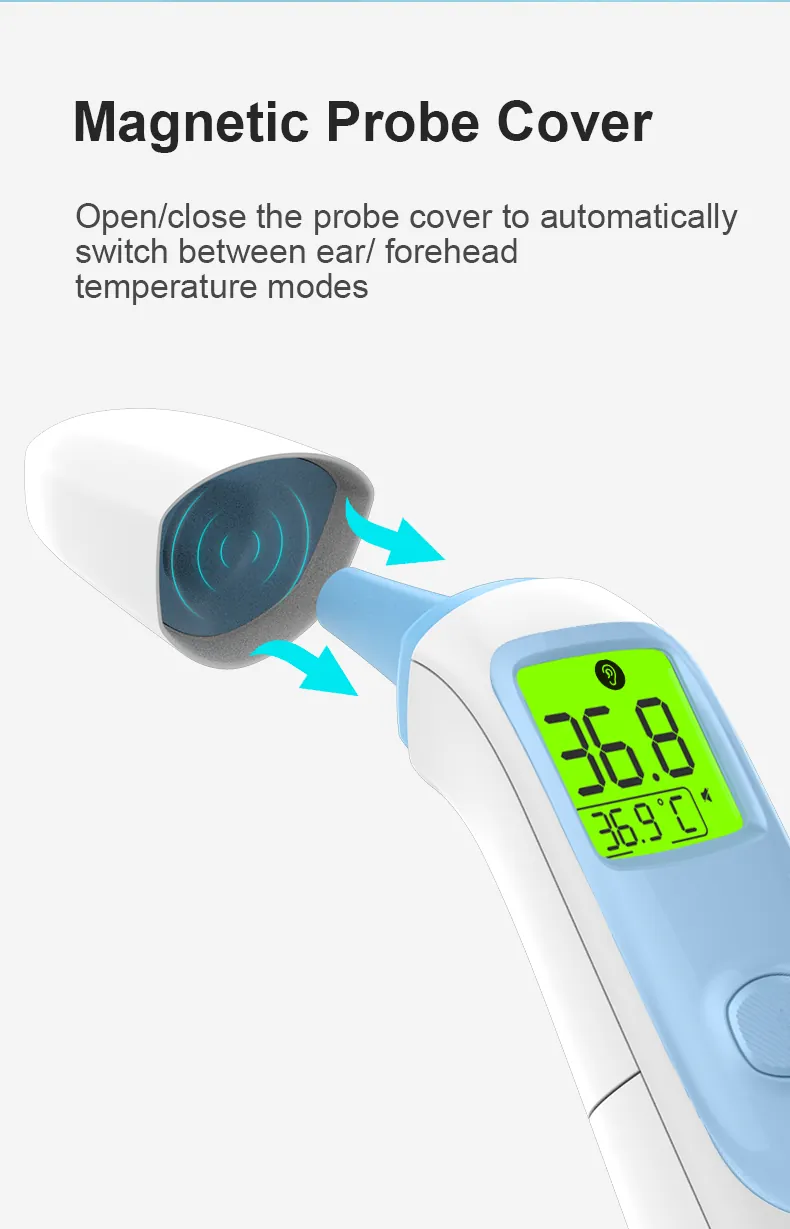

1. Multi-Function : It has forehead mode, ear mode, object mode, and 3 modes to make the temperature measurement more accurate.

2 . Easy to use , the machine design intention is simple and accurate.

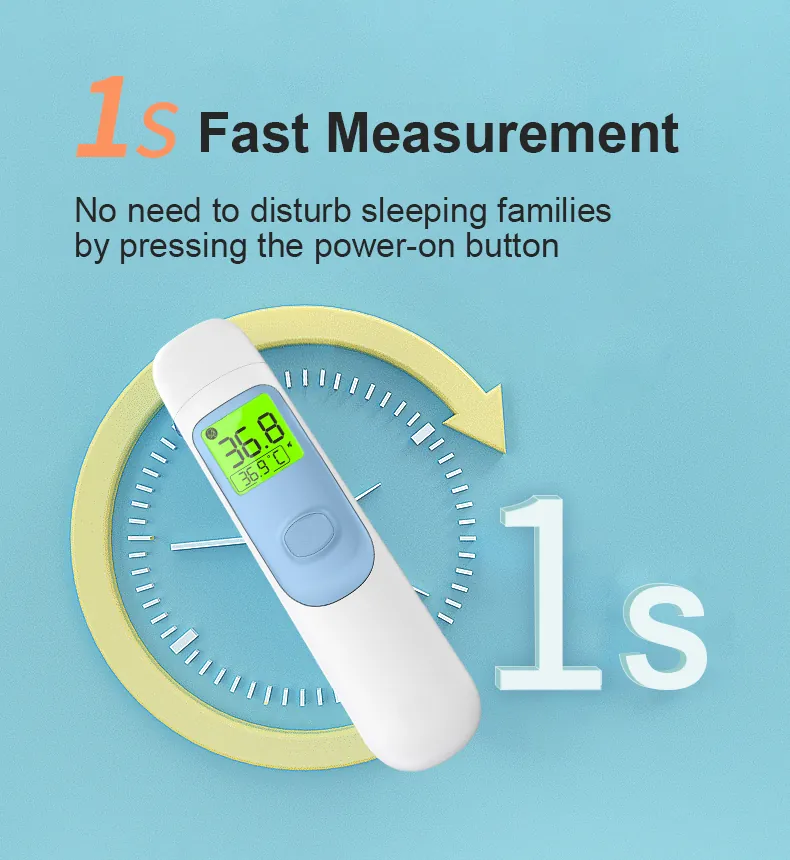

3. Read the temperature in 1 second , so the parents no longer worry about the difficulty of temperature measurement, and sick children can sleep soundly without being disturbed by temperature measurement.

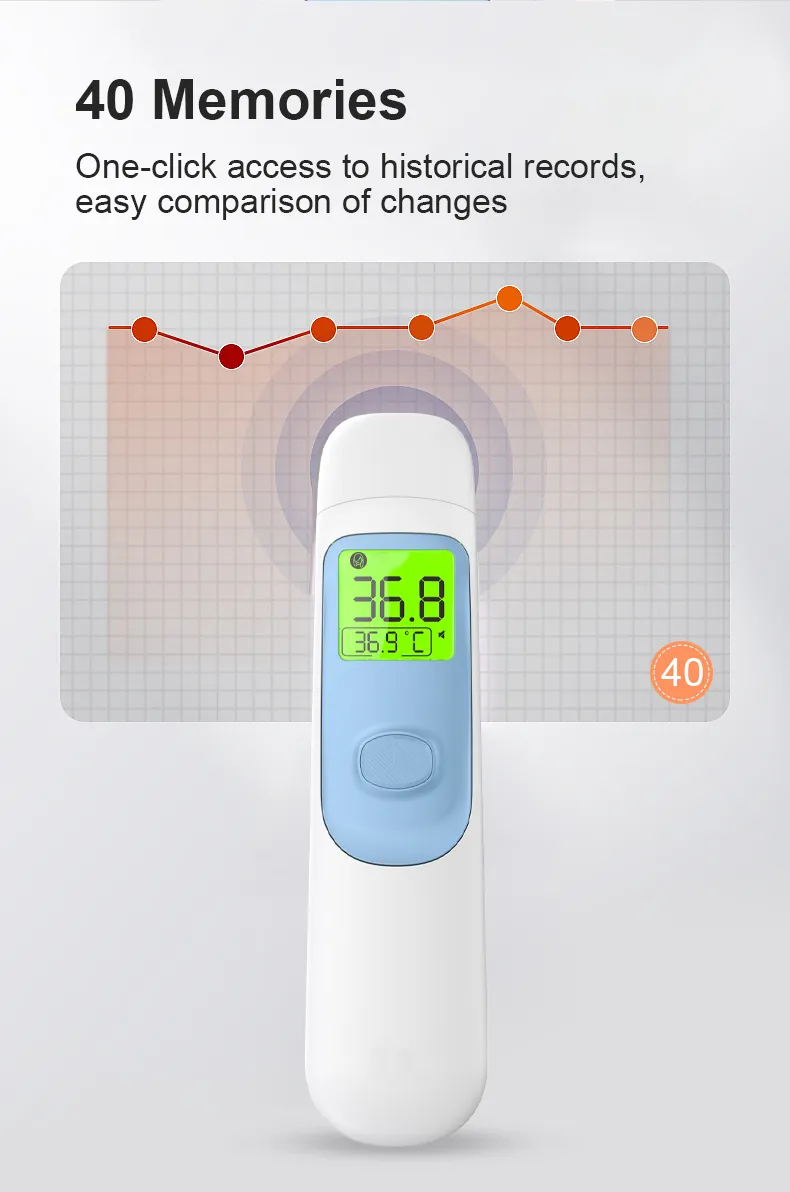

4. It can help you remember 40 sets of temperature data . You have no need to record it anymore.

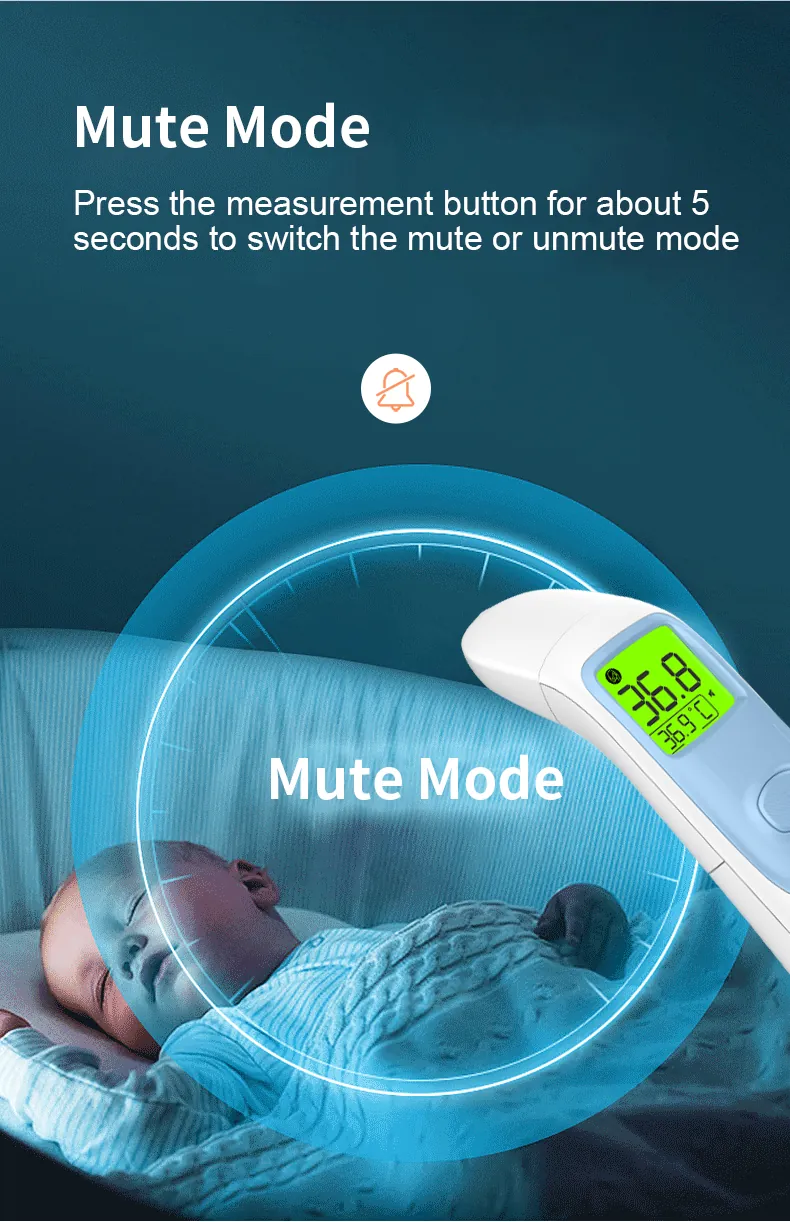

5. With Mute Mode;

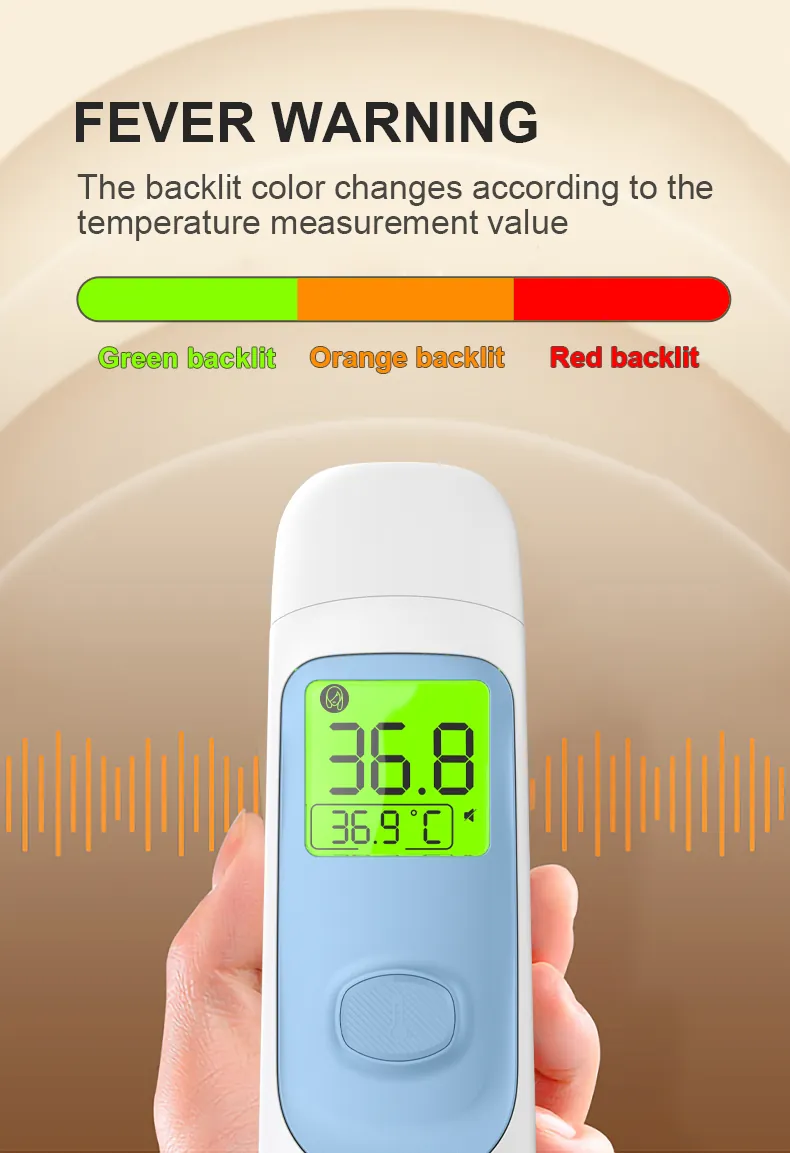

6. Fever warning function;

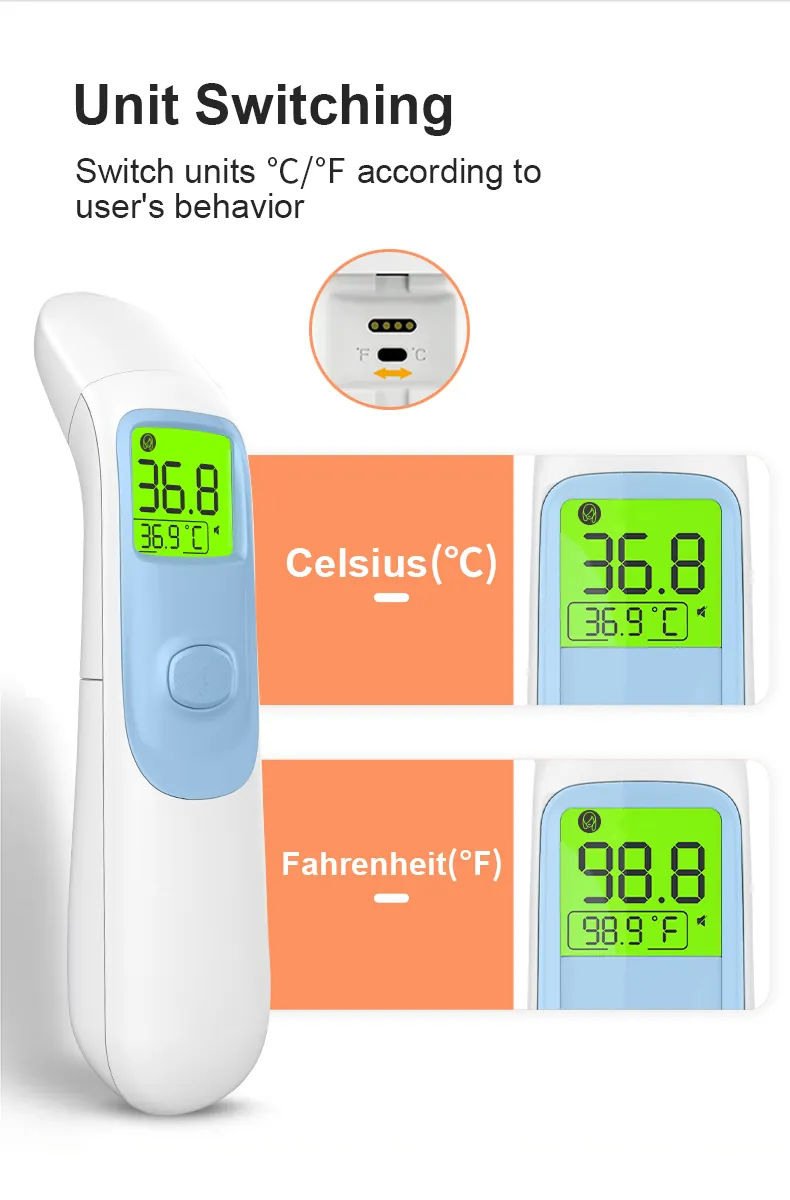

7. Conversion of Celsius/Fahrenheit Units;

8. Automatic shutdown function, low power consumption.

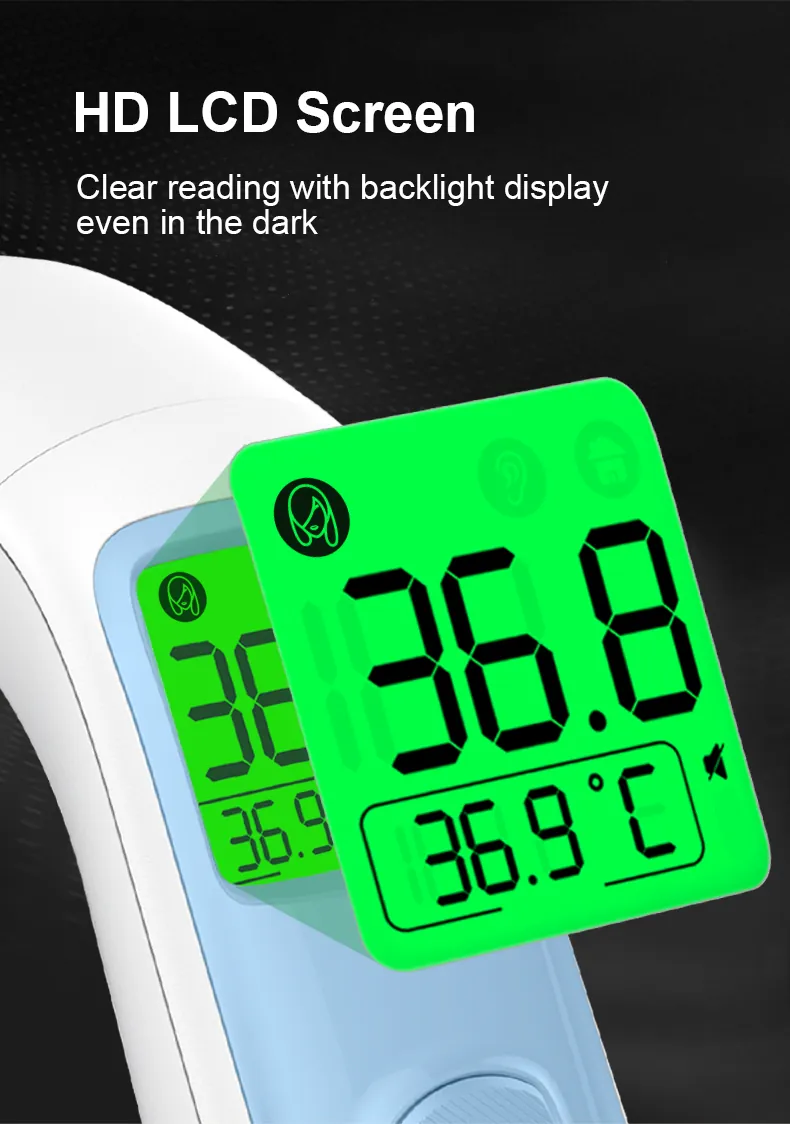

9. Slim cut, small body with a large screen , shows current and previous readings .

10. Multi-function : Strict inspection standard, control the accuracy within ±0.15℃in blackbody mode, with thousands of clinical trials.

11. Product Quality Reliable: 100% Product Testing . Every unit will run an environmental test between 15℃ to 35℃.

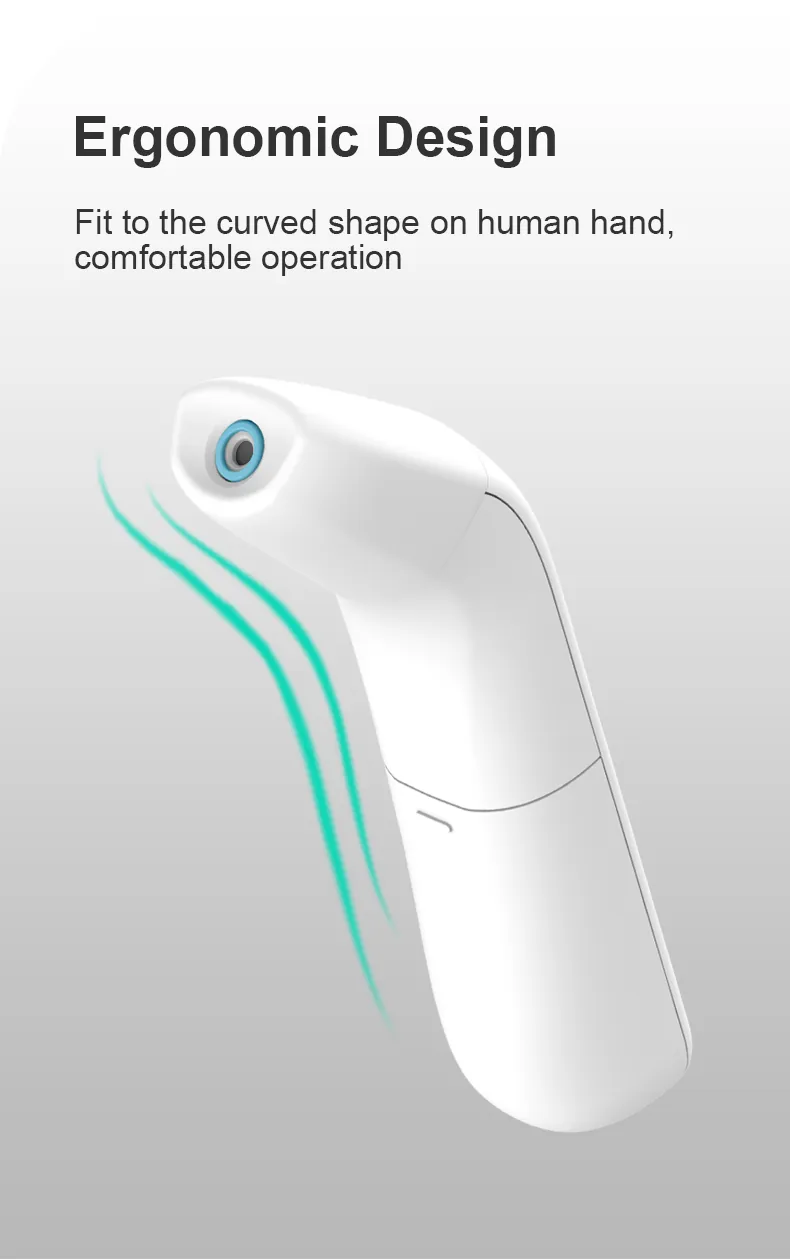

12. Product Design:

Unique Shape Patent Design Protection Product. It has the obvious advantage to open the market than the public model.

13. With a stylish protective pouch with every purchase

14. 3 Colors Backlight, color temperature indication

15. The AOJ Infrared Thermometer shuts off automatically after 10 seconds to preserve the life of the battery.

16. Low battery indicator, warns the user to replace the battery.

17. Factory Price , The price is very competitive.

18. Usage: The product is not only perfect for use with newborns, infants, children, or adults but also perfect to use test room temperature, milk, water, bath water, and so on.

Show 4 more images

Specification :

Product name FDA-approved 510k non-contact infrared thermometer with local medical device license
Applicable regulations and laws ASTM E 1965-98 (Reapproved 2009) Standard Specification for Infrared Thermometers for Intermittent Determination of Patient Temperature
ISO80601-2-56 First Edition 2009-10-01 Medical Electrical Equipment - Part 2-56: Particular Requirements For Basic Safety And Essential Performance Of Clinical Thermometers For Body Temperature Measurement. (General Plastic Surgery/General Hospital) —
Display Segment LCD, green and red LCD backlight
Temperature units ℃ /℉, switchable
Power supply DC 3V, AAAX2
Measurement range Forehead: 32.0°C-42.9°C (98.6°F-109.2°F)
Ear: 32.0°C-42.9°C (98.6°F-109.2°F) —
Object: 0°C-100°C (32°F-212°F) —
Accuracy (Laboratory) Ear & Forehead mode ±0.2℃ /±0.4℉
Object mode ±1.0°C/2.0°F
Display resolution 0.1℃/℉
Automatic shutdown 10s±1s
Memory 40 groups of the measured temperature.
Operational conditions Temperature: 10℃-40℃ (50℉-104℉) / Humidity: 15-95%RH, non-condensing Atmospheric pressure: 70-106 kPa
Storage condition Ambient Temperature: -20°C to 55°C (-4°F-131°F) Relative Humidity: 0-95% RH, non-condensing Atmospheric pressure: 50kPa to 106kPa
Battery 2*AAA can be used more than 3000 times
Weight & Dimension 80g (with battery), 143×35×41mm(body size)

All 10 product graphics published for this model are included here; model designations and specification values are kept verbatim.

Specifications

Product Name 3 in 1 Forehead & Ear Temperature Thermometer AOJ-20H
Applicable Regulations and laws ASTM E-1965-98(Reapproved 2009) standard specification for Infrared thermometers for intermittent determination of patient temperature ISO80601-2-56 first edition 2009-10-01 medical electrical equipment -part 2-56: particular requirements for basic safety and essential performance of clinical thermometers for body temperature measurement. (general plastic surgery/general hospital)
Display Segment LCD display, 4 colors LED backlight
Temperature Units °C/°F, Switchable
Power Supply DC 3V, AAA*2
Measurement Range Forehead: 32°C-42.9°C(89.6°F-109.2°F) Ear: 32°C-42.9°C(89.6°F-109.2°F) Object: 0°C-100°C(32°F-199°F)
Accuracy(Laboratory) Ear&Forehead mode ±0.2°C/±0.4°F Object mode ±1°C/±2°F
Display Resolution 0.1°C/°F
Automatic Shut Down 10s±1s
Memory 40 Groups of values
Operational Conditions Temperature:10°C-40°C (50°F-104°F)/Humidity:15%-95%RH,non-condensing atmospheric pressure:70-106kPa
Storage Condition Ambient temperature:20°C-55°C(-4°F-131°F)relative humidity: 0-95% RH,non-condensing atmospheric pressure:50Kpa to 106Kpa
Battery 2*aaa can be used for more than 3000 times temperature measurement
Gross Weight&Dimension 93g(with Batteries)163.5*40*41mm

The table lists the specifications published for this model. The full controlled sheet — accuracy report, electrical ratings and packaging data — comes with your enquiry.
