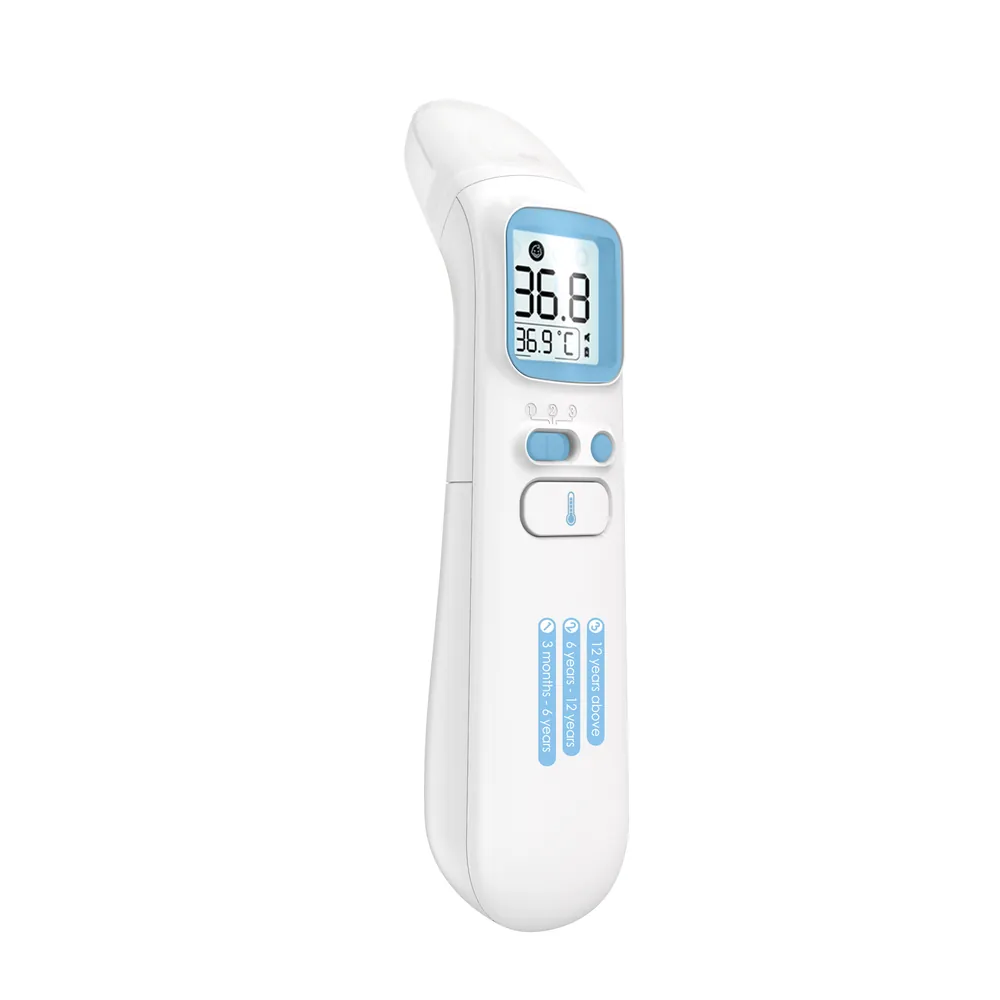

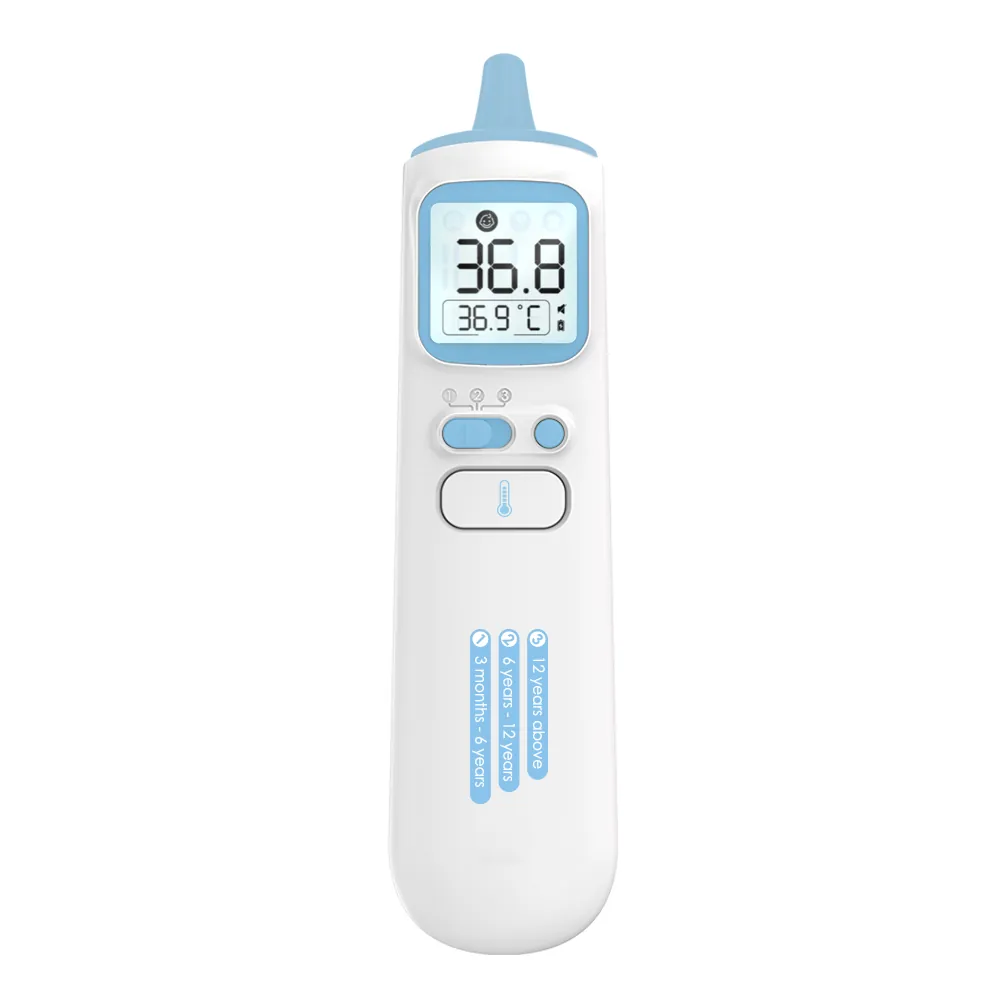

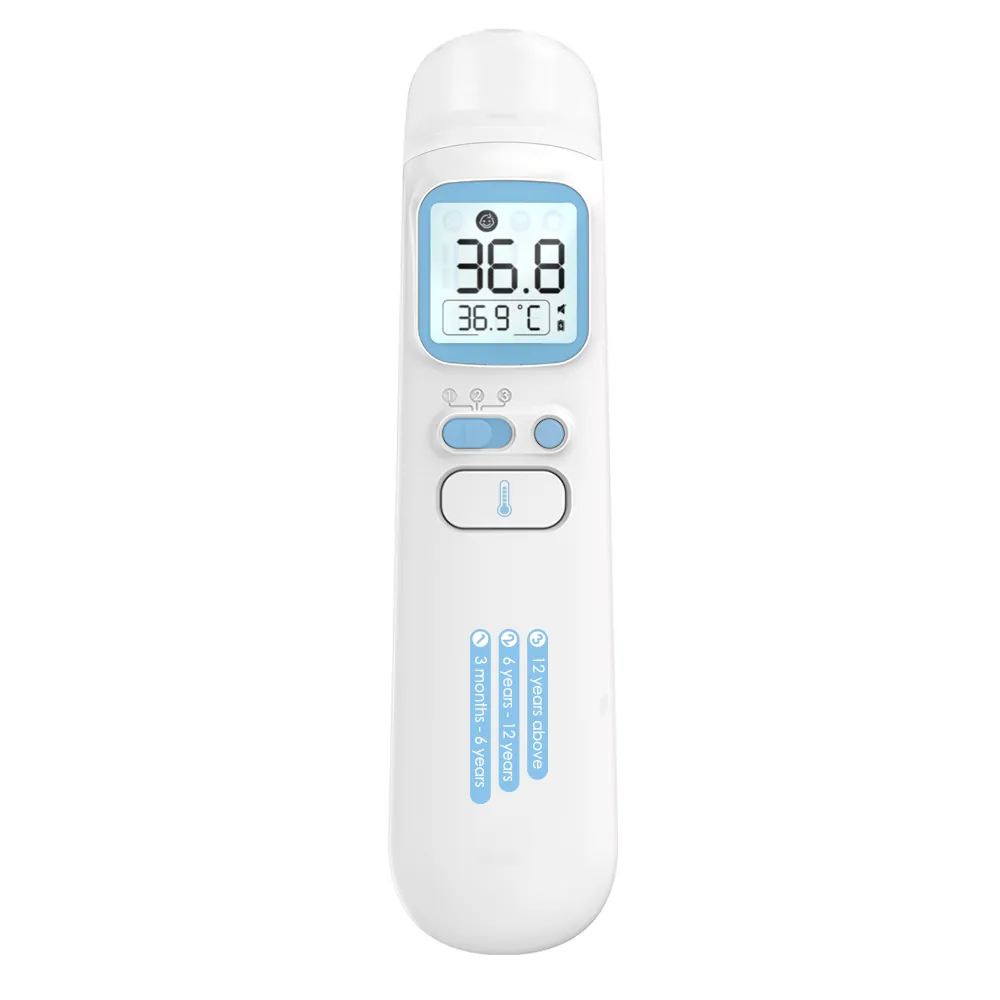

AOJ-20B Non-contact Infrared Thermometer

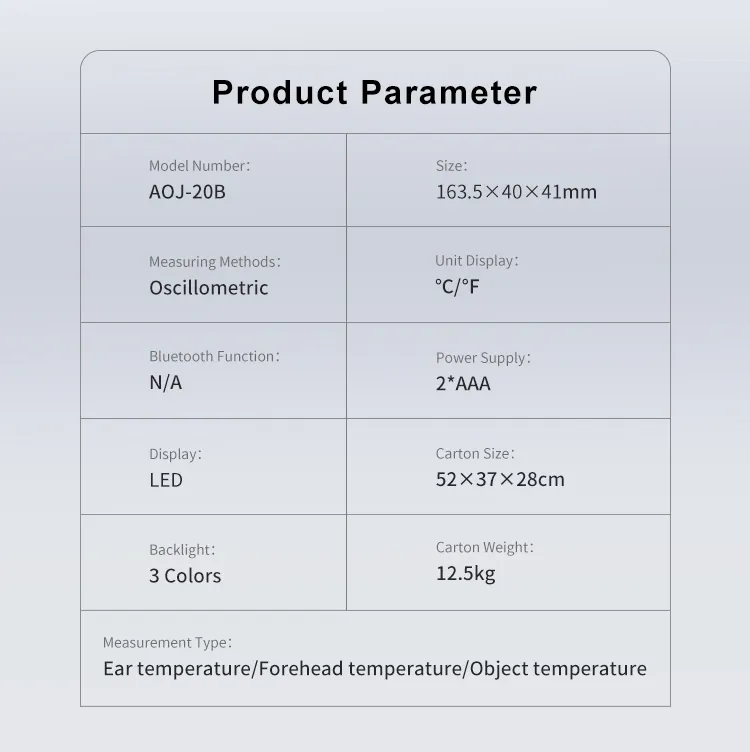

Specifications

Product name	FDA approved 510k non-contact infrared thermometer with local medical device license
Applicable regulations and laws	ASTM E 1965-98 (Reapproved 2009) Standard Specification for Infrared Thermometers for Intermittent Determination of Patient Temperature

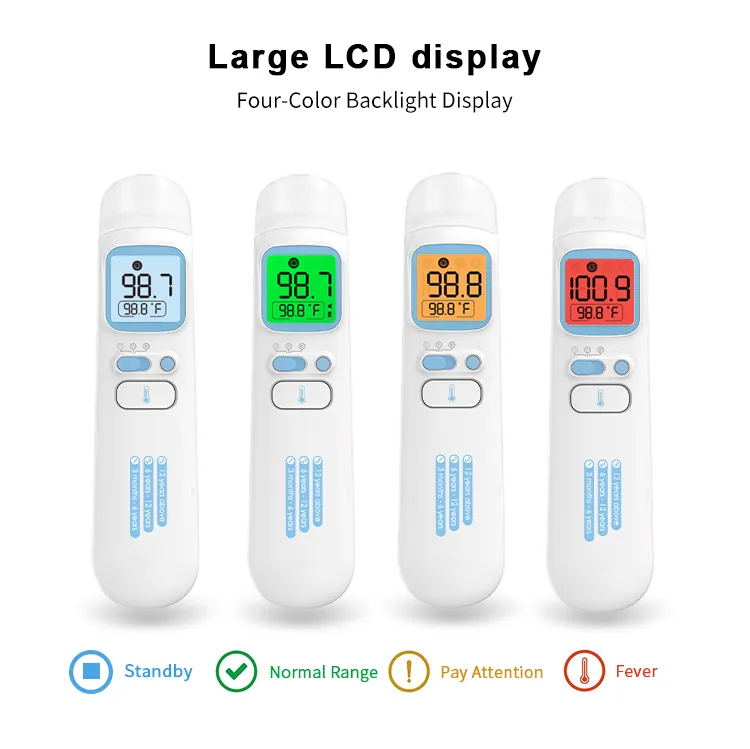

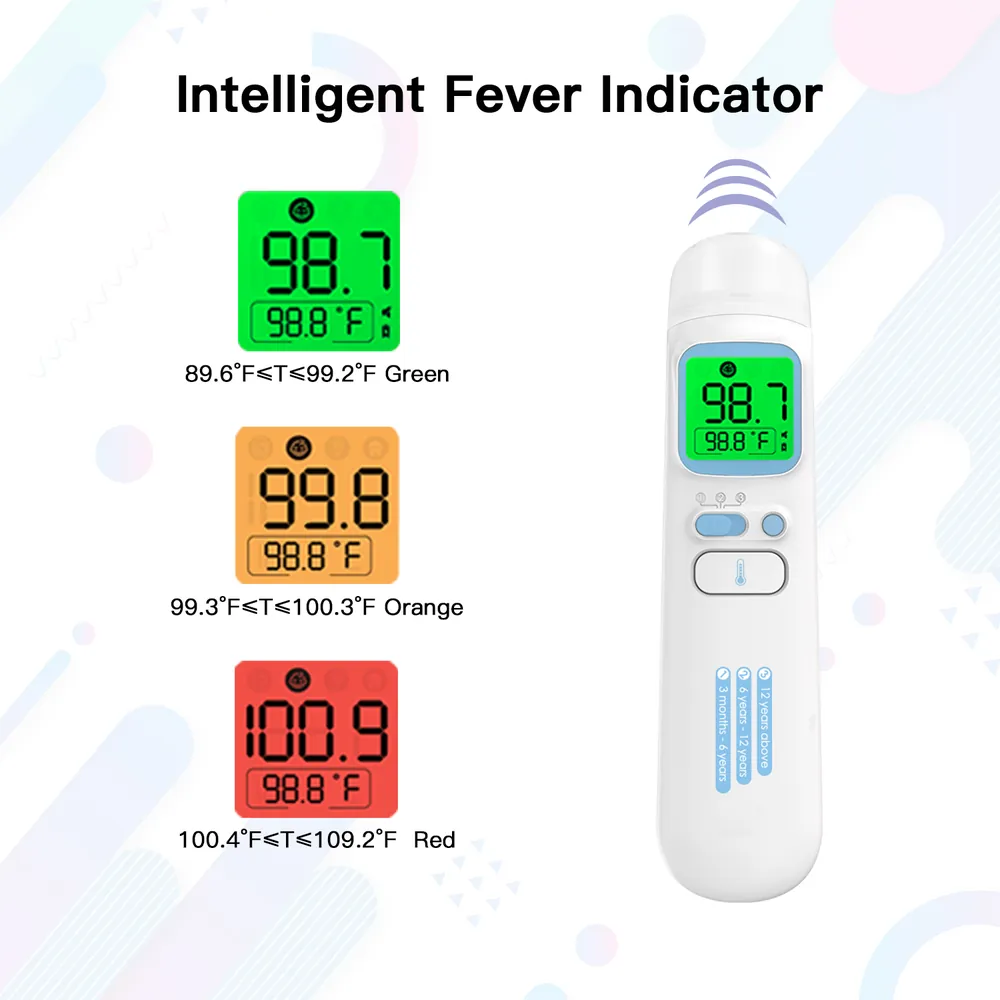

Display	Segment LCD, green and red LCD backlight
Temperature units	℃ /℉, switchable
Power supply	DC 3V, AAAX2
Measurement range	Forehead: 32.0°C-42.9°C (98.6°F-109.2°F)
Accuracy (Laboratory)	Ear & Forehead mode ±0.2℃ /±0.4℉
Object mode	±1.0°C/2.0°F
Display resolution	0.1℃/℉
Automatic shutdown	10s±1s
Memory	40 groups of measured temperature.
Operational conditions	Temperature: 10℃-40℃ (50℉-104℉) / Humidity: 15-95%RH, non-condensing Atmospheric pressure: 70-106 kPa
Storage condition	Ambient Temperature: -20°C to 55°C (-4°F-131°F) Relative Humidity: 0-95% RH, non-condensing Atmospheric pressure: 50kPa to 106kPa
Battery	2*AAA, can be used for more than 3000 times

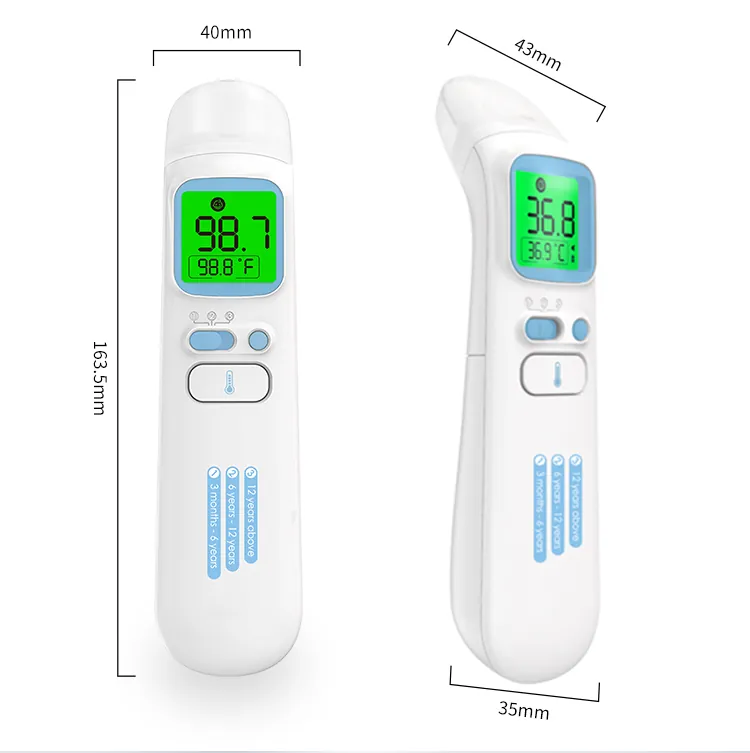

Weight & Dimension	80g (with battery), 143×35×41mm(body size)

The table lists the specifications published for this model. The full controlled sheet — accuracy report, electrical ratings and packaging data — comes with your enquiry.

OEM / ODM

This model can be customised as a whole product: housing finish and silkscreen, display and language pack, cuff specification, app branding, retail packaging and manual. New variants can also be derived from the same platform.

Documentation and samples

The files a buyer normally needs before a program is signed off. Everything is issued against an enquiry and matched to the exact model.

Regulatory	Certificate copies and scope statements Test reports from accredited laboratories Declarations of conformity, and FDA clearance numbers where applicable Technical file extracts for your own regulatory submission
Technical	Controlled specification sheet: measurement method, accuracy, electrical ratings, cuff range Packaging, carton and master-carton data Protocol and SDK documentation for connected models
Commercial	Quotation with volume tiers MOQ and lead time for the model you select Sample arrangement before tooling

Certificates and test reports are issued per model, not per company. Tell us the target market and we send the matching set.
